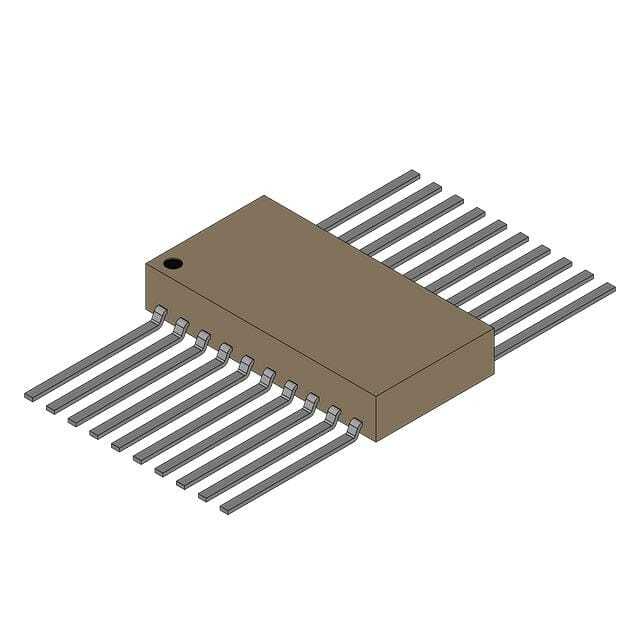

JM38510/34701BSA

SKU: 87020

Manufacturer: Texas Instruments

Identity Comparator 8-Bit Inverting 20-Pin CFPAK Tube

2800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Identity Comparator
Logic Family	F
Number of Bits	8
Polarity	Inverting
Maximum Propagation Delay Time @ Maximum CL (ns)	10@5V
Absolute Propagation Delay Time (ns)	14
Process Technology	Bipolar
Output Function	A=B
Maximum Low Level Output Current (mA)	20
Maximum High Level Output Current (mA)	-1
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Propagation Delay Test Condition (pF)	50
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	CFPAK
Pin Count	20
Standard Package Method	FPAK
Terminal Form	Surface Mount
Package Height	2.45(Max)
Package Length	13.72(Max)
Package Width	7.62(Max)
PCB changed	20
