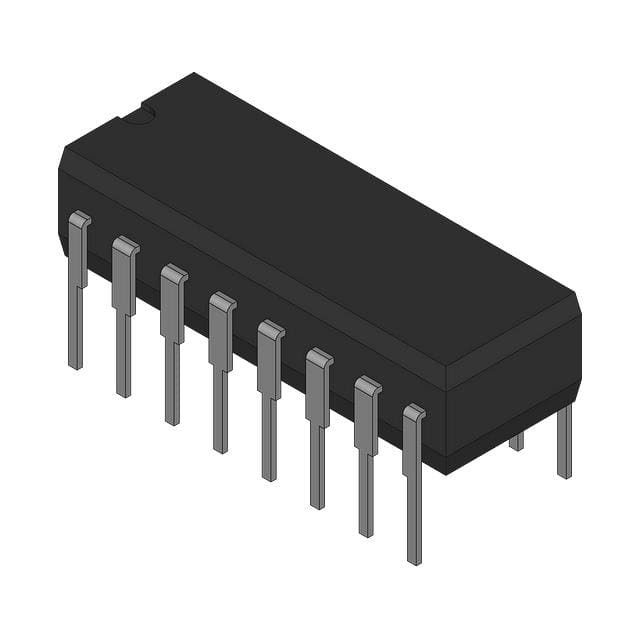

MC10H350P

SKU: 70017

Manufacturer: onsemi

Translator PECL to TTL 4-CH Unidirectional 16-Pin PDIP Tube

1430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Logic Family	ECL
Logic Function	Translator
Translation	PECL to TTL
Channel Type	Unidirectional
Number of Channels	4
Maximum Propagation Delay Time @ Maximum CL (ns)	5@5V
Absolute Propagation Delay Time (ns)	8
Process Technology	ECL
Output Type	3-State
Maximum Low Level Output Current (mA)	20
Maximum High Level Output Current (mA)	-3
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	0
Operating Temperature-Max	75
Packing Method	Tube
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	4.95(Max)
Package Length	19.69(Max)
Package Width	7.11(Max)
PCB changed	16
