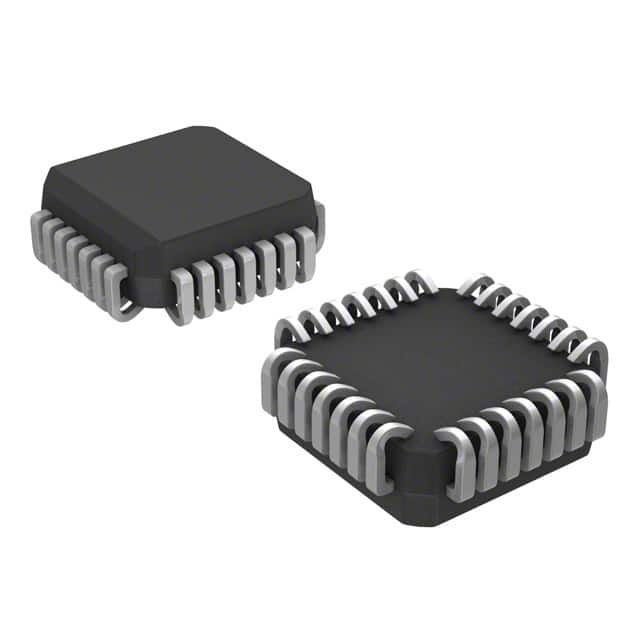

MC10H601FN

SKU: 70018

Manufacturer: onsemi

Translator ECL to TTL 9-CH Unidirectional 28-Pin PLCC Rail

3090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Logic Family	ECL
Logic Function	Translator
Translation	ECL to TTL
Channel Type	Unidirectional
Number of Channels	9
Maximum Propagation Delay Time @ Maximum CL (ns)	9.6@-5.2V@5V
Absolute Propagation Delay Time (ns)	15
Process Technology	ECL
Output Type	3-State
Maximum Low Level Output Current (mA)	48
Maximum High Level Output Current (mA)	-15
Operating Supply Voltage-Min (V)	-4.94/4.5
Typical Operating Supply Voltage (V)	-5.2/5
Operating Supply Voltage-Max (V)	-5.46/5.5
Operating Temperature-Min	0
Operating Temperature-Max	85
Packing Method	Rail
Pin Count	28
Original Package	PLCC
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	3.69(Min)
Package Length	11.58(Max)
Package Width	11.58(Max)
PCB changed	28
