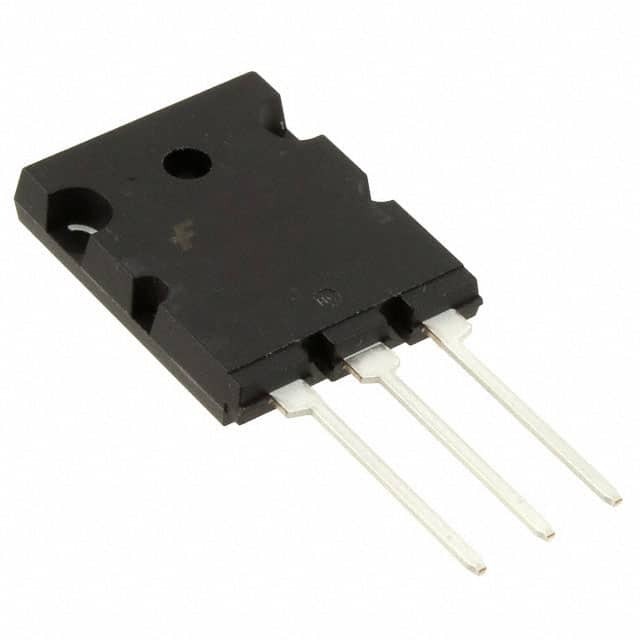

FGL60N100BNTD

SKU: 96598

Manufacturer: onsemi

Trans IGBT Chip N-CH 1000V 60A 180000mW 3-Pin(3+Tab) TO-264 Tube

18210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±25
Collector-Emitter Voltage-Max (V)	1000
Typical Collector Emitter Saturation Voltage (V)	2.5
Maximum Continuous Collector Current (A)	60
Maximum Gate Emitter Leakage Current (uA)	0.5
Maximum Power Dissipation (mW)	180000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-264
Pin Count	3
Terminal Form	Through Hole
Package Height	26
Package Length	20
Package Width	5
PCB changed	3
