FGP3440G2-F085

SKU: 11720

Manufacturer: onsemi

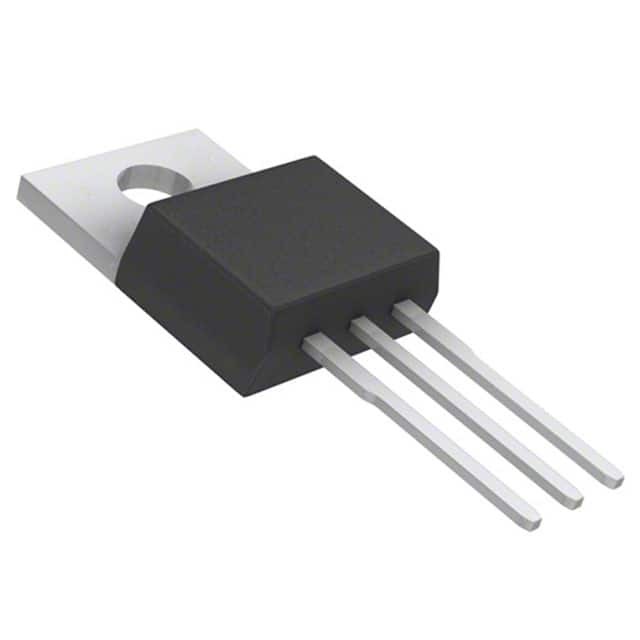

Trans IGBT Chip N-CH 390V 26.9A 166000mW Automotive 3-Pin(3+Tab) TO-220 Tube

1990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±10
Collector-Emitter Voltage-Max (V)	390
Typical Collector Emitter Saturation Voltage (V)	1.1
Maximum Continuous Collector Current (A)	26.9
Maximum Power Dissipation (mW)	166000
Operating Temperature-Min	-40
Operating Temperature-Max	175
Packing Method	Tube
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.4(Max)
Package Length	10.67(Max)
Package Width	4.7(Max)
PCB changed	3
Tab	Tab
