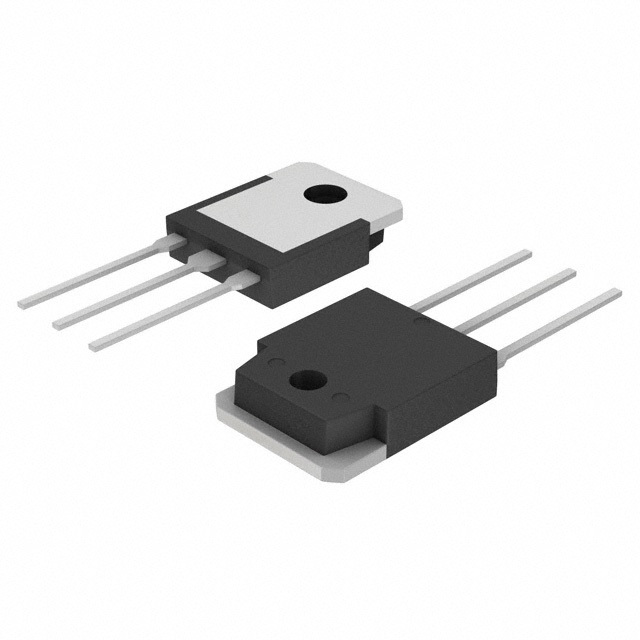

FGA20S125P

SKU: 124945

Manufacturer: onsemi

Trans IGBT Chip N-CH 1250V 40A 250000mW 3-Pin(3+Tab) TO-3PN Rail

630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	No
PPAP	No
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±25
Collector-Emitter Voltage-Max (V)	1250
Typical Collector Emitter Saturation Voltage (V)	1.9
Maximum Continuous Collector Current (A)	40
Maximum Gate Emitter Leakage Current (uA)	0.5
Maximum Power Dissipation (mW)	250000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Rail
Original Package	TO-3PN
Pin Count	3
Terminal Form	Through Hole
Package Height	18.9(Max)
Package Length	16.2(Max)
Package Width	5(Max)
PCB changed	3
