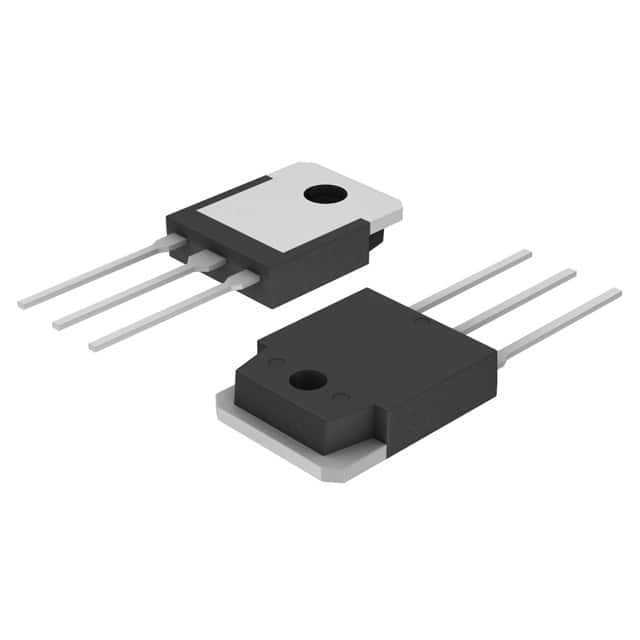

FGA15N120ANTDTU

SKU: 25905

Manufacturer: onsemi

Trans IGBT Chip N-CH 1200V 30A 186000mW 3-Pin(3+Tab) TO-3P Rail

160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	No
PPAP	No
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±20
Collector-Emitter Voltage-Max (V)	1200
Typical Collector Emitter Saturation Voltage (V)	2.3
Maximum Continuous Collector Current (A)	30
Maximum Gate Emitter Leakage Current (uA)	0.25
Maximum Power Dissipation (mW)	186000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Rail
Original Package	TO-3P
Pin Count	3
Standard Package Method	TO-3P
Terminal Form	Through Hole
Package Height	18.7
Package Length	15.6
Package Width	4.8
PCB changed	3
Tab	Tab
