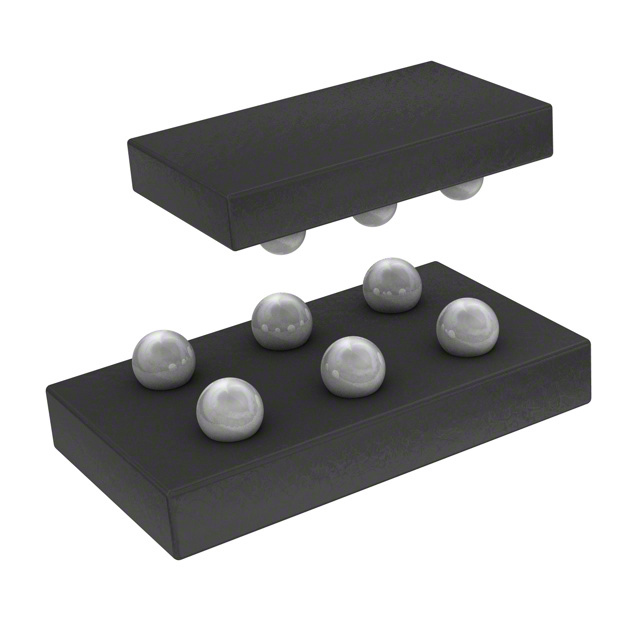

EFC6601R-TR

SKU: 61256

Manufacturer: onsemi

Trans MOSFET N-CH Si 13A 6-Pin WLCSP T/R

37100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Dual Dual Source Common Drain
Channel Mode	Depletion
Channel Type	N
Number of Elements per pcs	2
Maximum Gate Source Voltage (V)	±12
Maximum Continuous Drain Current (A)	13
Maximum Gate Source Leakage Current (nA)	1000
Maximum Drain Source Resistance (mOhm)	11.5@4.5V
Typical Gate Charge @ Vgs (nC)	48@4.5V
Maximum Power Dissipation (mW)	2000
Typical Fall Time (ns)	47000
Typical Rise Time (ns)	630
Typical Turn-Off Delay Time (ns)	53000
Typical Turn-On Delay Time (ns)	280
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	WLCSP
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.22(Max)
Package Length	2.7
Package Width	1.81
PCB changed	6
