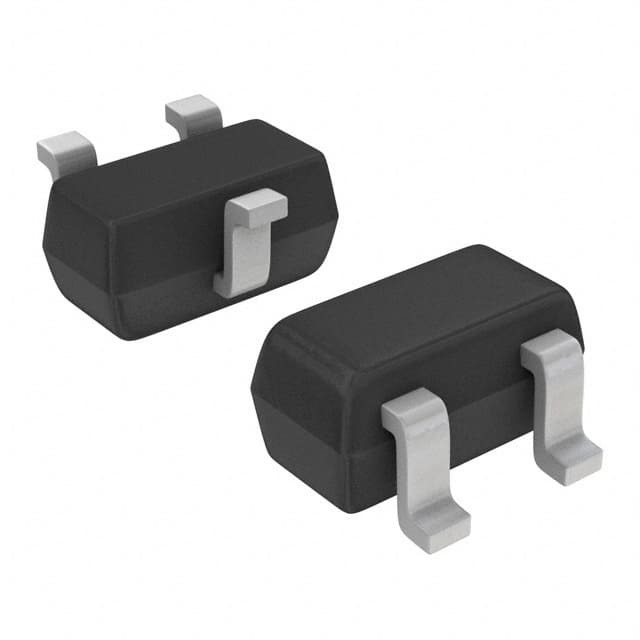

2SC4617

SKU: 6452

Manufacturer: onsemi

Trans GP BJT NPN 50V 0.1A 125mW 3-Pin SOT-416 T/R

1910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.21.00.75
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	50
Collector-Emitter Voltage-Max (V)	50
Maximum Emitter Base Voltage (V)	5
Maximum Collector-Emitter Saturation Voltage (V)	0.4@5mA@60mA
Maximum DC Collector Current (A)	0.1
Minimum DC Current Gain	120@1mA@6V
Maximum Power Dissipation (mW)	125
Maximum Transition Frequency (MHz)	180(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	SOT
Original Package	SOT-416
Terminal Form	Surface Mount
Package Height	0.75
Package Length	1.6
Package Width	0.8
PCB changed	3
