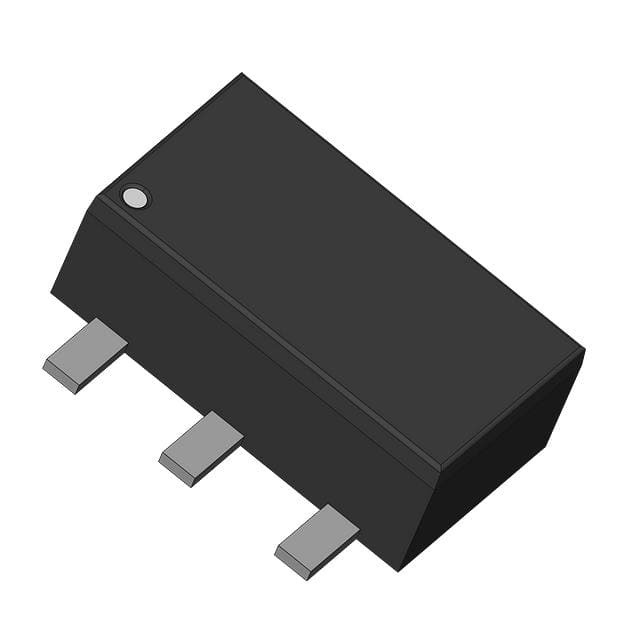

2SC4548E-TD-E

SKU: 6451

Manufacturer: onsemi

Trans GP BJT NPN 400V 0.2A 1300mW 4-Pin(3+Tab) SOT-89

2840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
ECCN (US)	EAR99
Part Status	Unconfirmed
Type	NPN
Product Category	Bipolar Power
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	400
Collector-Emitter Voltage-Max (V)	400
Maximum Emitter Base Voltage (V)	5
Operating Junction Temperature (°C)	150
Maximum Base Emitter Saturation Voltage (V)	1@5mA@50mA
Maximum Collector-Emitter Saturation Voltage (V)	0.6@5mA@50mA
Maximum DC Collector Current (A)	0.2
Maximum Collector Cut-Off Current (nA)	100
Minimum DC Current Gain	100@50mA@10V
Maximum Power Dissipation (mW)	1300
Maximum Transition Frequency (MHz)	70(Typ)
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SOT-89
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.5
Package Length	4.5
Package Width	2.5
PCB changed	3
Tab	Tab
