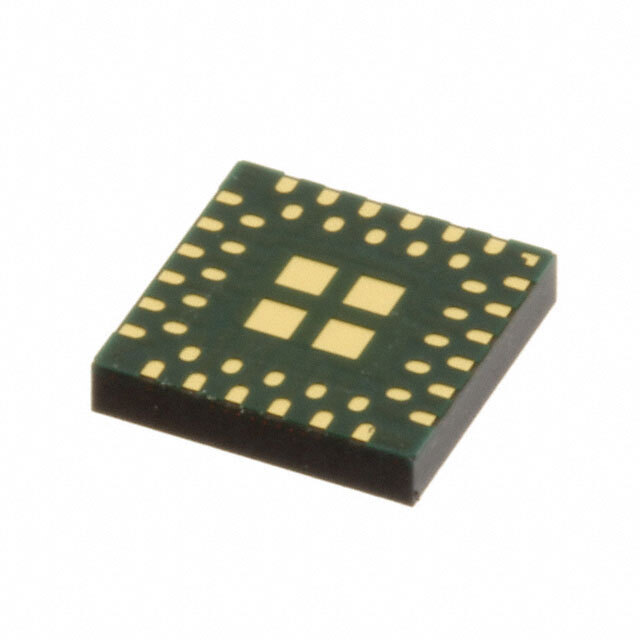

MKM14Z128CHH5

SKU: 63193

Manufacturer: NXP Semiconductors

MCU 32-bit ARM Cortex M0+ RISC 128KB Flash 1.8V/2.5V/3.3V 44-Pin LGA EP Tray

2220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991a.2.
Part Status	NRND
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	KM1x
Instruction Set Architecture	RISC
Device Core	ARM Cortex M0+
Core Architecture	ARM
Maximum CPU Frequency (MHz)	50
Maximum Clock Rate (MHz)	50
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	16KB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	20
No. of Timers	3
Number of ADCs	Single
ADC Channels	5/4
ADC Resolution (bit)	16
LCD Segments	288
USART	0
UART	4
USB	0
SPI	2
I2C	2
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	Yes
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	LGA EP
Pin Count	44
Standard Package Method	LGA
Terminal Form	Surface Mount
Package Height	0.98(Max)
Package Length	5
Package Width	5
PCB changed	44
