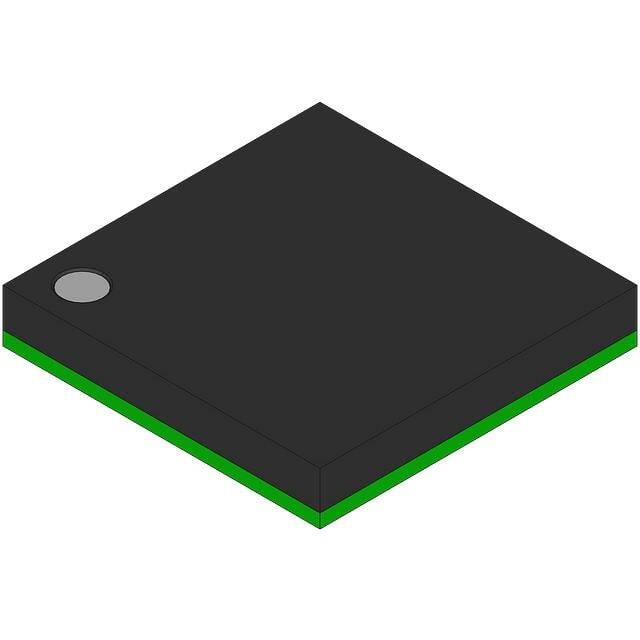

MKL82Z128VMC7

SKU: 27722

Manufacturer: NXP Semiconductors

MCU 32-bit ARM Cortex M0+ RISC 128KB Flash 3.3V 121-Pin MAP-BGA Tray

4740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992C
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	KL8x
Instruction Set Architecture	RISC
Core Architecture	ARM
Maximum Clock Rate (MHz)	72
Data Bus Width (bit)	32
Program Memory Size	128KB
RAM Size	96KB
Maximum Expanded Memory Size	4GB
Programmability	Yes
Interface Type	I2C/SPI/UART
No. of Timers	6
PWM	3
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	16
DAC Resolution (bit)	12
USART	0
UART	3
SPI	2
I2C	2
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Parallel Master Port	No
Real Time Clock	Yes
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	MAP-BGA
Pin Count	121
Terminal Form	Surface Mount
Package Height	1.18(Max)
Package Length	8
Package Width	8
