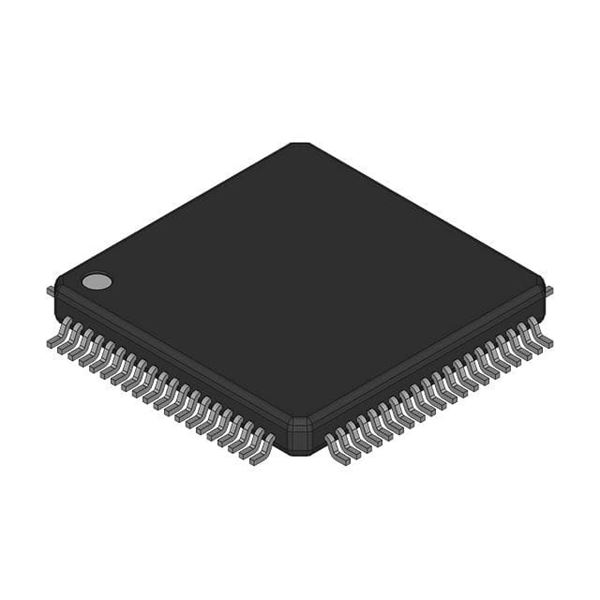

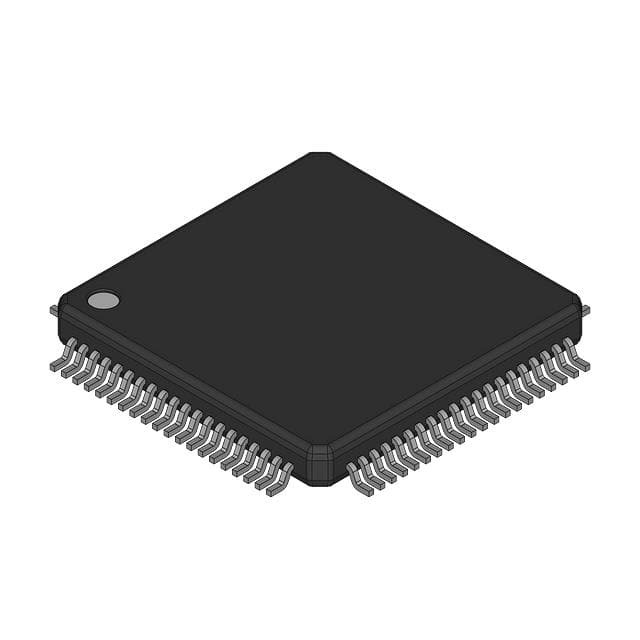

MKL82Z128VLK7

SKU: 155184

Manufacturer: NXP Semiconductors

MCU 32-bit ARM Cortex M0+ RISC 128KB Flash 3.3V 80-Pin LQFP Tray

990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	No
PPAP	No
Family Name	KL8x
Instruction Set Architecture	RISC
Device Core	ARM Cortex M0+
Core Architecture	ARM
Maximum CPU Frequency (MHz)	72
Maximum Clock Rate (MHz)	72
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	96KB
Maximum Expanded Memory Size	4GB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	56
No. of Timers	6
PWM	3
Number of ADCs	Single
ADC Channels	12
ADC Resolution (bit)	16
Number of DACs	Dual
DAC Resolution (bit)	12
USART	0
UART	3
USB	0
SPI	2
I2C	2
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Parallel Master Port	No
Real Time Clock	Yes
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	LQFP
Pin Count	80
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	12
Package Width	12
PCB changed	80
