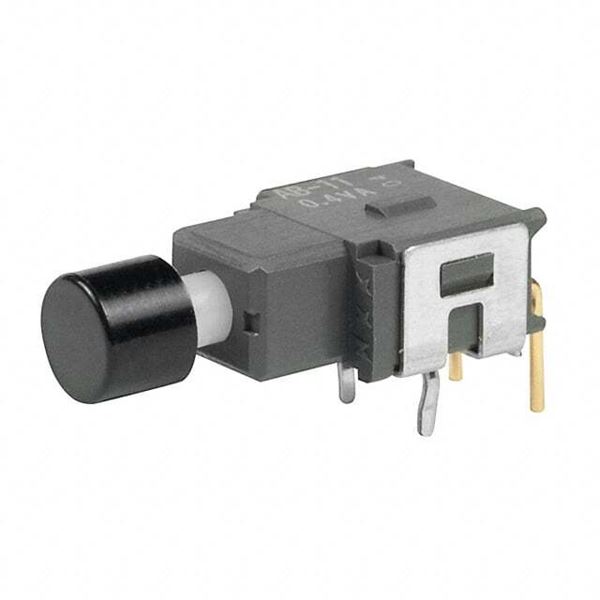

AB11AH-F-A-RO

SKU: 102235

Manufacturer: NKK Switches

Switch Push Button OFF (ON) SPST Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Bracket Mount/Through Hole

3030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Switch Function	Momentary Contact
Pole Throw Configuration	SPST
Actuator Style	Round Plunger
Switch Configuration	OFF (ON)
Bushing Type	Unthreaded
Current Rating-Max(A)	0.1@28VAC 28VDC
Maximum Power Rating (VA)	0.4@28VAC 28VDC
Dielectric Strength	500VAC
Minimum Insulation Resistance (MOhm)	500
Maximum Contact Resistance (mOhm)	50
Electrical Life (Cycles)	50000
Mechanical Life (Cycles)	50000
Actuator Color	Black
Actuator Length (mm)	6.3
Number of Rows	1
Terminal Form	Bracket Mount/Through Hole
Terminal Form	PC Pins
Number of Terminals	2
Terminal Length (mm)	3.1
Terminal Pitch (mm)	5.08
Seal Location	Body/Terminals/N/A
Seal Description	Total/Epoxy/Process
Body Orientation	Right Angle
Operating Temperature-Min	-30
Operating Temperature-Max	85
Body Length (mm)	9.8
Bushing Length (mm)	4.5
Body Depth (mm)	9.38
Body Height (mm)	6.18
Length (mm)	9.8
Depth (mm)	20.48
