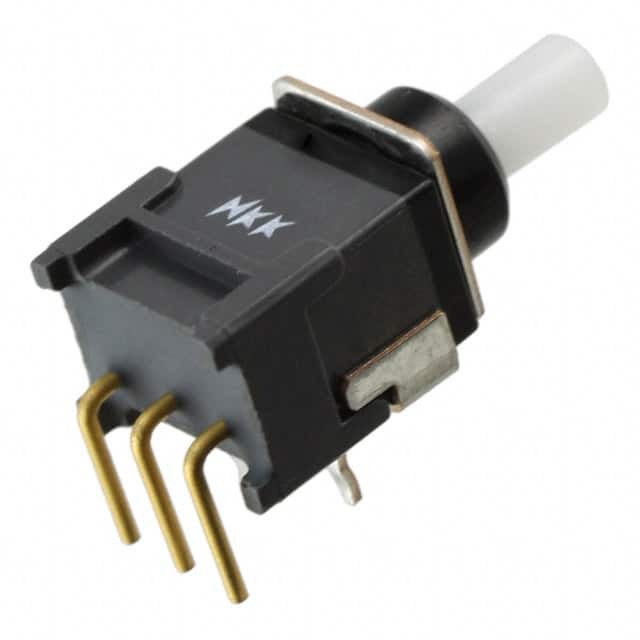

BB15AH

SKU: 129135

Manufacturer: NKK Switches

Switch Push Button ON (ON) SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole

2640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.33
Automotive	No
PPAP	No
Switch Function	Momentary Contact
Pole Throw Configuration	SPDT
Actuator Style	Round Plunger
Switch Configuration	ON (ON)
Bushing Type	Unthreaded
Current Rating-Max(A)	0.1@28VAC 28VDC
Maximum Power Rating (VA)	0.4@28VAC 28VDC
Dielectric Strength	500VAC
Minimum Insulation Resistance (MOhm)	500
Maximum Contact Resistance (mOhm)	50
Electrical Life (Cycles)	50000
Mechanical Life (Cycles)	50000
Actuator Color	White
Actuator Length (mm)	5.4
Number of Rows	1
Terminal Form	Through Hole
Terminal Form	PC Pins
Number of Terminals	3
Terminal Pitch (mm)	2.54
Seal Location	Body/N/A
Seal Description	Total/Process
Body Orientation	Right Angle
Operating Temperature-Min	-30
Operating Temperature-Max	85
Length (mm)	8.8
Depth (mm)	19.6
