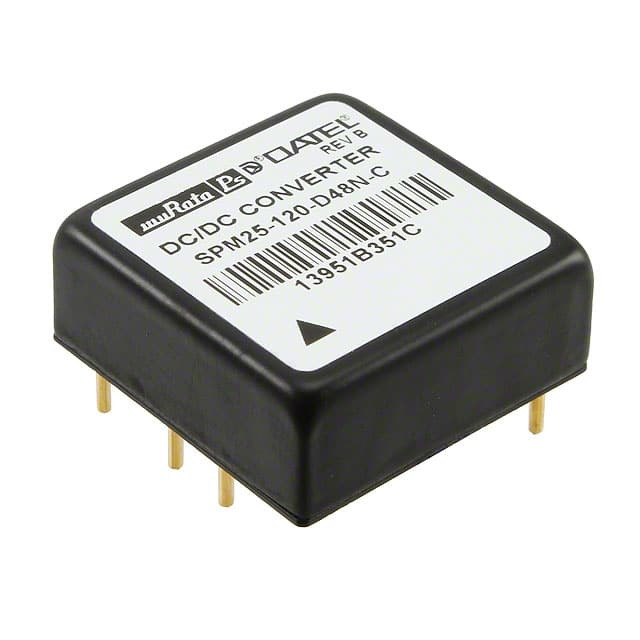

SPM25-120-D48N-C Murata Power Solutions

SPM25-120-D48N-C

SKU: 23918

Manufacturer: Murata Power Solutions

Module DC-DC 48VIN 1-OUT 12V 2.1A 25.2W 6-Pin

Download sample

Request Free Samples

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Down
Isolation	Isolated
Number of Outputs	1
Minimum Input Voltage (V)	36
Typical Input Voltage (V)	48
Maximum Input Voltage (V)	75
Output Voltage (V)	12
Output Current (A)	2.1
Output Power (W)	25.2
Minimum Isolation Voltage	1600VDC
Switching Frequency (kHz)	355
Switching Regulator	Yes
Load Regulation	0.125%
Line Regulation	0.1%
Efficiency (%)	87(Typ)
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Output Type	Fixed
Pin Count	6
Terminal Form	Through Hole
Package Height	9.9
Package Length	25.4
Package Width	25.4
