    SPB05B-05

    SKU: 45266
    Manufacturer: MEAN WELL

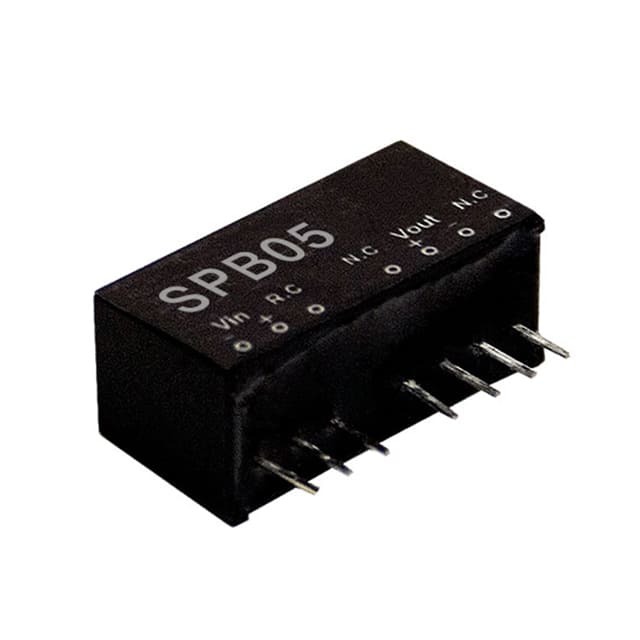

    Module DC-DC 1-OUT 5V 1A 5W 7-Pin SIP Module
    2510 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    HTS 8542.39.00.01
    Automotive No
    PPAP No
    Type Step Down
    Number of Outputs 1
    Isolation Isolated
    Minimum Input Voltage (V) 18
    Maximum Input Voltage (V) 36
    Output Voltage (V) 5
    Output Current (A) 1
    Output Power (W) 5
    Minimum Isolation Voltage 1500VDC
    Input/Output Type DC/DC
    Switching Frequency (kHz) 100(Min)
    Switching Regulator Yes
    Load Regulation 0.5%
    Line Regulation 0.5%
    Efficiency (%) 83(Typ)
    On/Off Logic Negative
    Operating Temperature-Min -40
    Operating Temperature-Max 80
    Product Weight (g) 4.8
    Output Type Fixed
    Original Package SIP Module
    Pin Count 7
    Standard Package Method SIP Module
    Terminal Form Through Hole
    Package Height 11.1
    Package Length 21.8
    Package Width 9.2
    PCB changed 7
