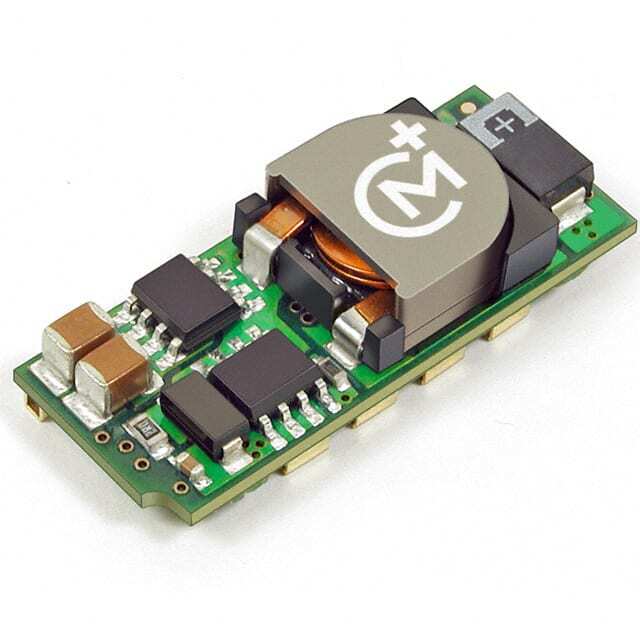

LSM2-T/30-D12R-C Murata Power Solutions

LSM2-T/30-D12R-C

SKU: 118653

Manufacturer: Murata Power Solutions

Module DC-DC 12VIN 1-OUT 0.8V to 5V 30A 125W 10-Pin Case C-71

Download sample

Request Free Samples

2440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Down
Number of Outputs	1
Isolation	Isolated
Minimum Input Voltage (V)	6
Typical Input Voltage (V)	12
Maximum Input Voltage (V)	14
Output Voltage (V)	0.8 to 5
Output Current (A)	30
Output Power (W)	125
Input/Output Type	DC/DC
Typical Standby Current (mA)	1.3(Max)
Switching Frequency (kHz)	430(Typ)
Switching Regulator	Yes
Load Regulation	0.4%
Line Regulation	0.2%
Efficiency (%)	94(Typ)
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	7.8
Output Type	Adjustable
Original Package	Case C-71
Pin Count	10
Standard Package Method	Case C-71
Terminal Form	Surface Mount
Package Height	7.11
Package Length	33.02
Package Width	13.46
