LQS60A48-3V3REJ Artesyn Embedded Technologies

LQS60A48-3V3REJ

SKU: 87129

Manufacturer: Artesyn Embedded Technologies

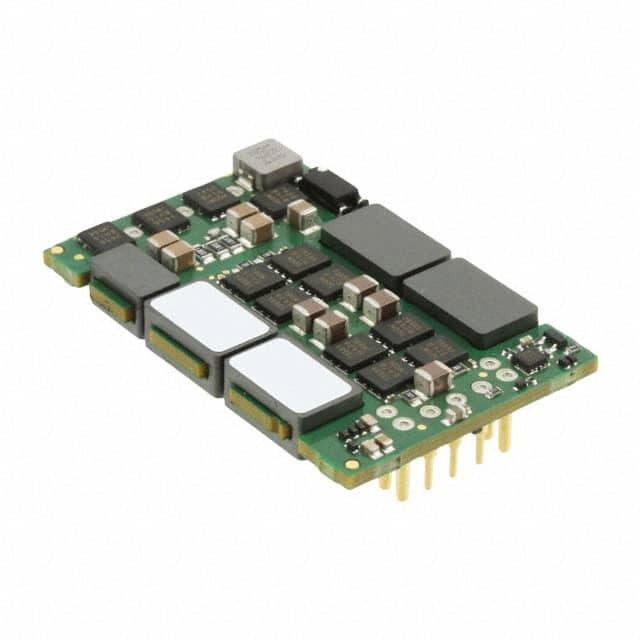

Module DC-DC 48VIN 1-OUT 3.3V 60A 200W 8-Pin Quarter-Brick

Download sample

Request Free Samples

2270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
Automotive	Unknown
PPAP	Unknown
Type	Step Down
Isolation	Isolated
Number of Outputs	1
Minimum Input Voltage (V)	36
Typical Input Voltage (V)	48
Maximum Input Voltage (V)	75
Output Voltage (V)	3.3
Output Current (A)	60
Output Power (W)	200
Minimum Isolation Voltage	2250VDC
Input/Output Type	DC/DC
Typical Standby Current (mA)	5
Switching Frequency (kHz)	480
Switching Regulator	Yes
Load Regulation	0.2%
Line Regulation	0.1%
Efficiency (%)	91(Typ)
On/Off Logic	Negative
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	37
Output Type	Fixed
Original Package	Quarter-Brick
Pin Count	8
Terminal Form	Through Hole
Package Height	6.86
Package Length	58.4
Package Width	36.8
