ZL40253LDG1

SKU: 151718

Manufacturer: Microsemi

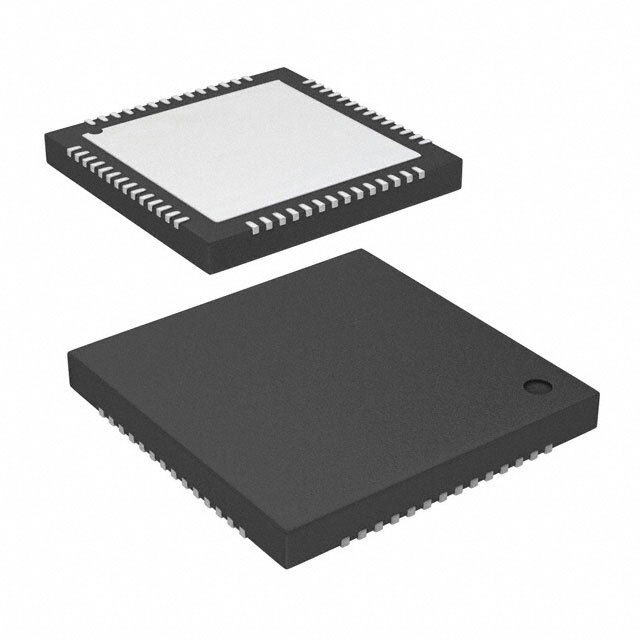

Clock Fanout Buffer 10-OUT 4-IN 1:10 56-Pin QFN EP Tray

3370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Fanout Buffer
Number of Outputs per Chip	10
Maximum Input Frequency (MHz)	156.25
Maximum Propagation Delay Time @ Maximum CL (ns)	3.8(Typ)@2.375V to 3.465V
Absolute Propagation Delay Time (ns)	3.8(Typ)
Maximum Duty Cycle	55%
Input Logic Level	CMOS
Output Logic Level	CMOS
Operating Supply Voltage-Min (V)	2.375
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.465
Maximum Power Dissipation (mW)	187(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	QFN EP
Pin Count	56
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	8
Package Width	8
PCB changed	56
