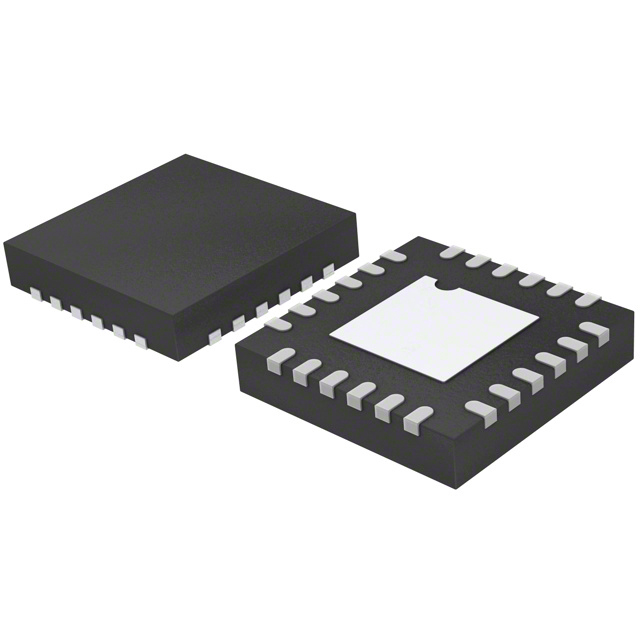

AD9508BCPZ

SKU: 58379

Manufacturer: Analog Devices

Clock Fanout Buffer 4-OUT 1-IN 1:4 24-Pin LFCSP EP Tray

1980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Fanout Buffer
Number of Outputs per Chip	4
Maximum Input Frequency (MHz)	1650
Maximum Propagation Delay Time @ Maximum CL (ns)	3.07@2.375V to 3.465V
Absolute Propagation Delay Time (ns)	3.07
Maximum Duty Cycle	61%
Input Logic Level	CMOS
Output Logic Level	CMOS
Operating Supply Voltage-Min (V)	2.375
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.465
Maximum Power Dissipation (mW)	500(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Pin Count	24
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.73
Package Length	4
Package Width	4
PCB changed	24
