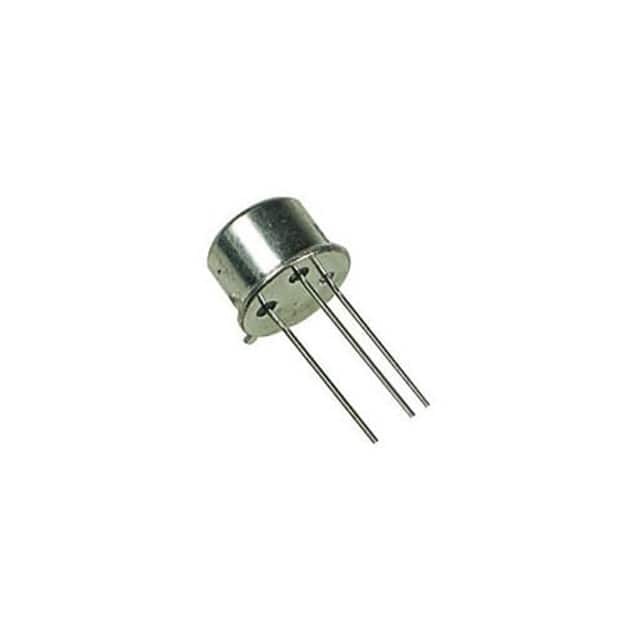

JANSR2N3637

SKU: 79881

Manufacturer: Microsemi

Trans GP BJT PNP 175V 1A 1000mW 3-Pin TO-39 Tray

1700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	175
Collector-Emitter Voltage-Max (V)	175
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	0.9@5mA@50mA
Maximum Collector-Emitter Saturation Voltage (V)	0.3@1mA@10mA
Maximum DC Collector Current (A)	1
Maximum Collector Cut-Off Current (nA)	10000
Minimum DC Current Gain	60@150mA@10V
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Tray
Supplier Temperature Grade	Military
Original Package	TO-39
Pin Count	3
Diameter	9.4(Max)
Terminal Form	Through Hole
Package Height	6.6(Max)
PCB changed	3
