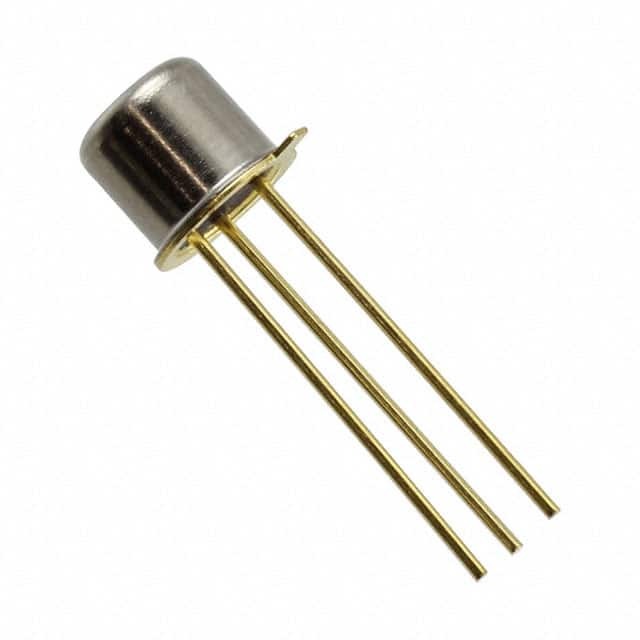

JANSR2N3700

SKU: 79883

Manufacturer: Microchip Technology

Trans GP BJT NPN 80V 1A 500mW 3-Pin TO-18 Tray

2680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	140
Collector-Emitter Voltage-Max (V)	80
Maximum Emitter Base Voltage (V)	7
Maximum Base Emitter Saturation Voltage (V)	1.1@15mA@150mA
Maximum Collector-Emitter Saturation Voltage (V)	0.2@15mA@150mA
Maximum DC Collector Current (A)	1
Minimum DC Current Gain	50@0.1mA@10V
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Tray
Supplier Temperature Grade	Military
Original Package	TO-18
Pin Count	3
Standard Package Method	TO-206-AA
Diameter	5.84(Max)
Terminal Form	Through Hole
Package Height	5.33(Max)
PCB changed	3
