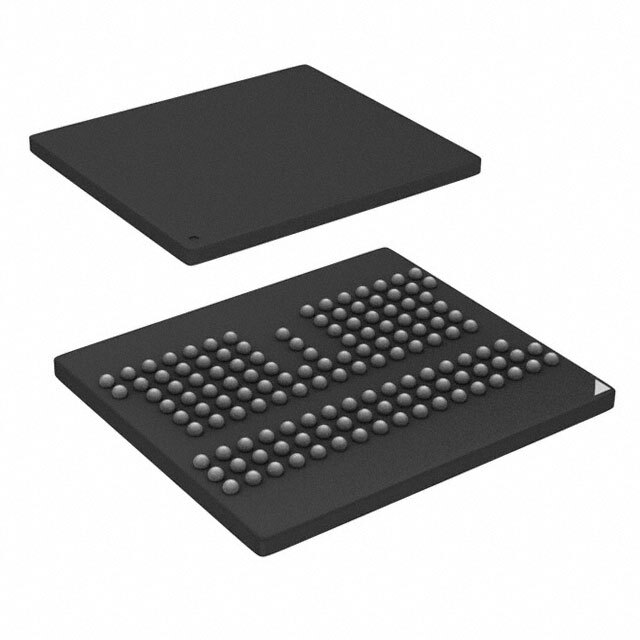

EDB1332BDBH-1DAAT-F-R

SKU: 75261

Manufacturer: Micron Technology

DRAM Chip Mobile LPDDR2 SDRAM 1Gbit 32Mx32 1.2V/1.8V Automotive 134-Pin FBGA T/R

640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.32.00.36
Automotive	Unknown
PPAP	Unknown
DRAM Type	Mobile LPDDR2 SDRAM
Chip Density (bit)	1G
Organization	32Mx32
Number of Internal Banks	8
Number of Words per Bank	4M
Number of Bits/Word (bit)	32
Data Bus Width (bit)	32
Maximum Clock Rate (MHz)	533
Maximum Access Time (ns)	5.5
Address Bus Width (bit)	13
Interface Type	HSUL
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.95
Operating Current (mA)	200
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Number of I/O Lines (bit)	32
Packing Method	Tape and Reel
Original Package	FBGA
Pin Count	134
