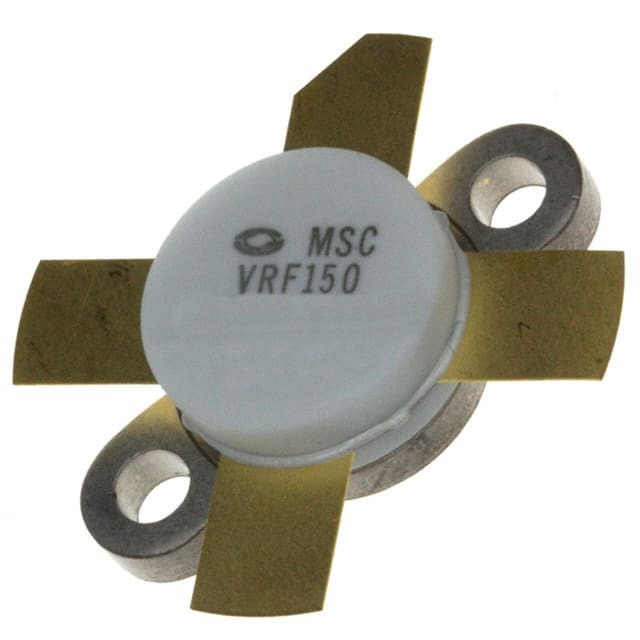

VRF150

SKU: 59776

Manufacturer: Microchip Technology

Trans RF MOSFET N-CH 170V 16A 4-Pin Style M-174 Box

2850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Body Material	Si
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Mode of Operation	2-Tone Class-A
Maximum Drain Source Voltage (V)	170
Maximum Gate Source Voltage (V)	±40
Maximum Gate Threshold Voltage (V)	4.4
Maximum VSWR	30
Maximum Continuous Drain Current (A)	16
Typical Input Capacitance @ Vds (pF)	420@50V
Typical Reverse Transfer Capacitance @ Vds (pF)	35@50V
Typical Output Capacitance @ Vds (pF)	210@50V
Maximum Power Dissipation (mW)	300000
Output Power (W)	150
Typical Power Gain (dB)	18
Maximum Frequency (MHz)	150
Typical Drain Efficiency (%)	50
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Box
Original Package	Style M-174
Pin Count	4
Terminal Form	Screw
Package Height	7.11(Max)
Package Length	24.89(Max)
Package Width	12.83(Max)
