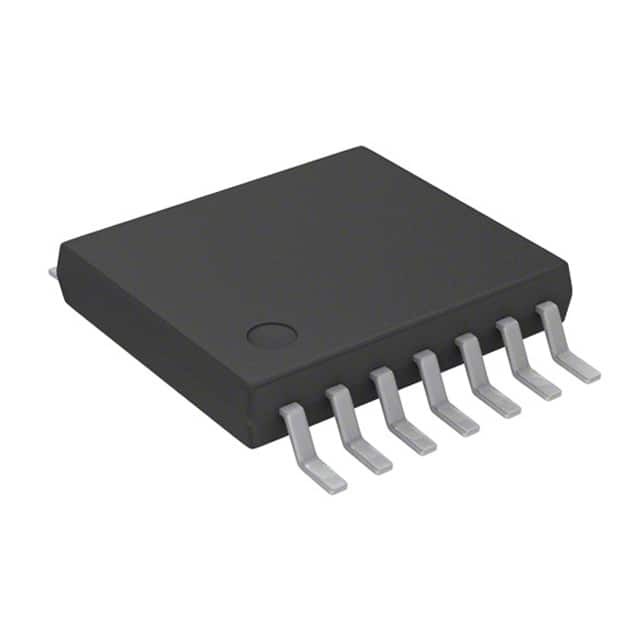

MCP660-E/ST

SKU: 56087

Manufacturer: Microchip Technology

Op Amp Triple High Speed Amplifier R-R O/P 5.5V 14-Pin TSSOP Tube

2860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	High Speed Amplifier
Manufacturer Type	High Speed Amplifier
Number of Channels per Chip	3
Rail to Rail	Rail to Rail Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	8@5.5V
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.00001(Typ)@5.5V
Typical Input Bias Current (uA)	0.000006@5.5V
Maximum Input Bias Current (uA)	0.005@5.5V@125C
Maximum Quiescent Current (mA)	27@5.5V
Typical Output Current (mA)	150(Max)
Power Supply Type	Single
Typical Slew Rate (V/us)	32@5.5V
Typical Input Noise Voltage Density (nV/rtHz)	6.8@5.5V
Typical Voltage Gain (dB)	126
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.004@5.5V
Minimum PSRR (dB)	61
Minimum CMRR (dB)	64
Minimum CMRR Range (dB)	60 to 65
Typical Gain Bandwidth Product (MHz)	60
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	TSSOP
Pin Count	14
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Length	5
Package Width	4.4
PCB changed	14
