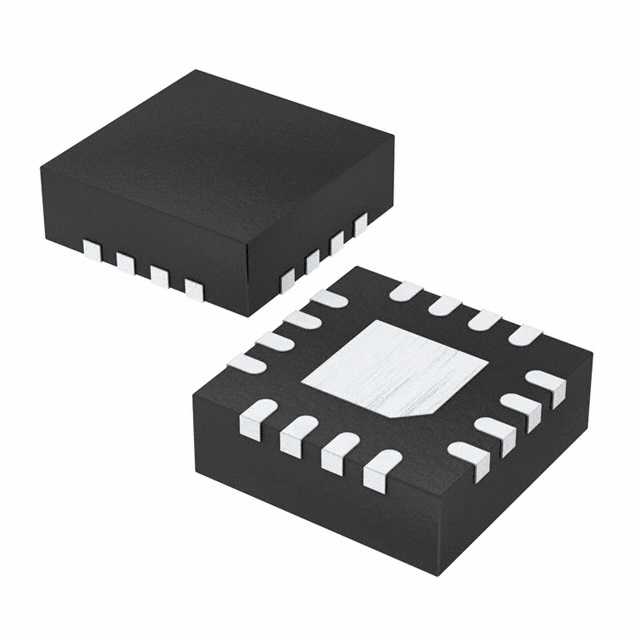

MCP659-E/ML

SKU: 122693

Manufacturer: Microchip Technology

Op Amp Quad GP R-R O/P 5.5V Automotive 16-Pin QFN EP Tube

1970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	Yes
PPAP	Yes
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Number of Channels per Chip	4
Rail to Rail	Rail to Rail Output
Maximum Input Offset Voltage (mV)	0.2@5.5V
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.000001(Typ)@5.5V
Typical Input Bias Current (uA)	0.000006@5.5V
Maximum Input Bias Current (uA)	0.005@5.5V@125C
Maximum Quiescent Current (mA)	36@5.5V
Power Supply Type	Single
Typical Slew Rate (V/us)	30@5.5V
Typical Input Noise Voltage Density (nV/rtHz)	7.5@5.5V
Typical Voltage Gain (dB)	123
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.004@5.5V
Minimum PSRR (dB)	61
Minimum CMRR (dB)	65
Minimum CMRR Range (dB)	65 to 70
Typical Gain Bandwidth Product (MHz)	50
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Pin Count	16
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.88
Package Length	4
Package Width	4
PCB changed	16
