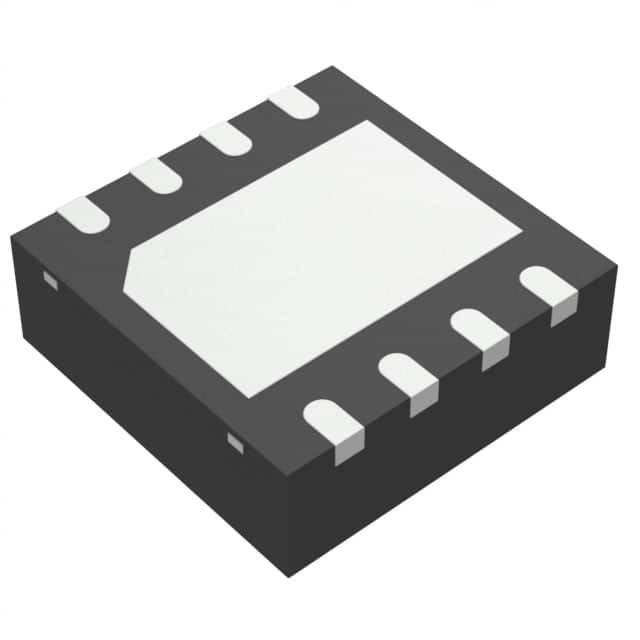

MCP1810T-33I/J8A

SKU: 66140

Manufacturer: Microchip Technology

LDO Regulator Pos 3.3V 0.15A 8-Pin VDFN EP T/R

1210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	0.15
Minimum Input Voltage (V)	2.7
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.38@150mA
Line Regulation	4%/V
Load Regulation	1%(Typ)
Maximum Quiescent Current (mA)	0.00005
Typical Ground Current @ Full Load (mA)	0.2
Junction to Ambient	73.1°C/W(Typ)
Junction to Case	10.7°C/W(Typ)
Special Features	Shutdown
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	VDFN EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.83
Package Length	2
Package Width	2
