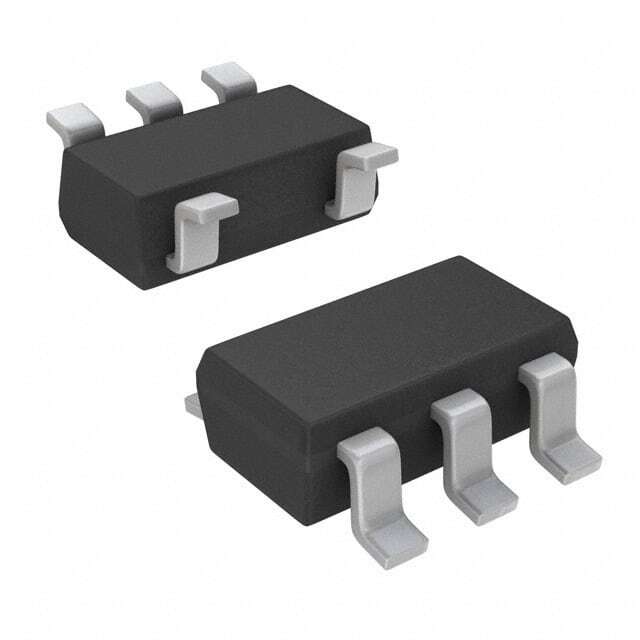

MCP1812AT-033/OT

SKU: 63048

Manufacturer: Microchip Technology

LDO Regulator Pos 3.3V 0.3A 5-Pin SOT-23 T/R

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	0.3(Min)
Minimum Input Voltage (V)	1.8
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.6@300mA
Line Regulation	20mV(Typ)
Load Regulation	50mV(Typ)
Maximum Quiescent Current (mA)	0.0005
Junction to Ambient	184.82°C/W(Typ)
Junction to Case	151.05°C/W(Typ)
Special Features	Over Current Protection
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-23
Pin Count	5
Terminal Form	Surface Mount
Package Height	1.3(Max)
Package Length	2.9
Package Width	1.6
