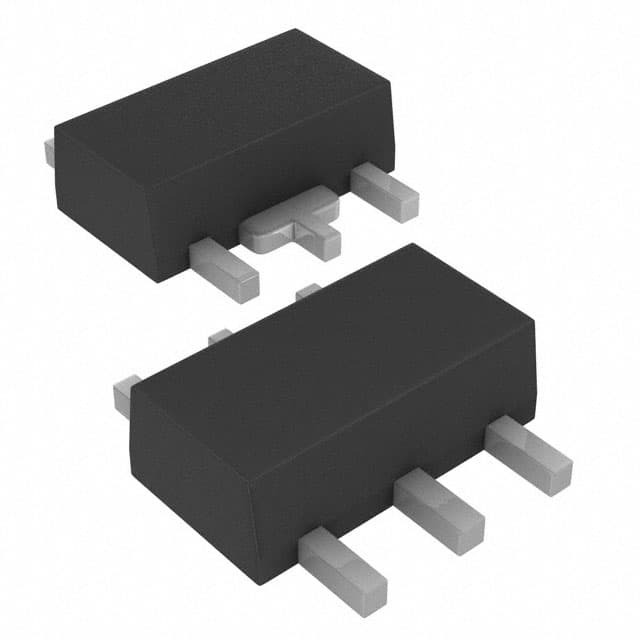

MCP1804T-C002I/MT

SKU: 119545

Manufacturer: Microchip Technology

LDO Regulator Pos 12V 0.15A 6-Pin(5+Tab) SOT-89 T/R

3300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	12
Maximum Output Current (A)	0.15(Min)
Minimum Input Voltage (V)	2
Maximum Input Voltage (V)	28
Maximum Dropout Voltage @ Current (V)	0.17@20mA
Line Regulation	0.3%/V
Load Regulation	175mV
Maximum Quiescent Current (mA)	0.115
Junction to Ambient	180°C/W(Typ)
Junction to Case	100°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	SOT-89
Pin Count	6
Terminal Form	Surface Mount
Package Height	1.6(Max)
Package Length	4.6(Max)
Package Width	2.6(Max)
PCB changed	5
