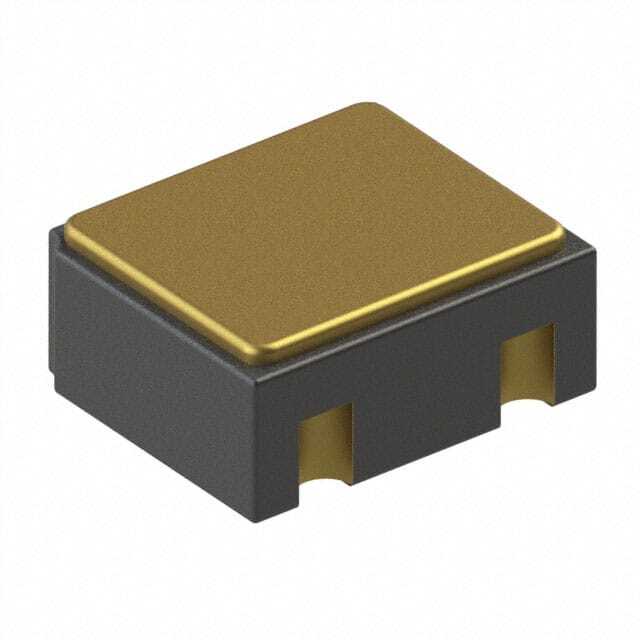

2N2907AUB

SKU: 36898

Manufacturer: Microchip Technology

Trans GP BJT PNP 60V 0.6A 500mW 4-Pin Case UB Waffle

3780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	60
Collector-Emitter Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	1.3@15mA@150mA
Maximum Collector-Emitter Saturation Voltage (V)	0.4@15mA@150mA
Maximum DC Collector Current (A)	0.6
Minimum DC Current Gain	75@0.1mA@10V
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Waffle
Original Package	Case UB
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.42(Max)
Package Length	3.25(Max)
Package Width	2.74(Max)
