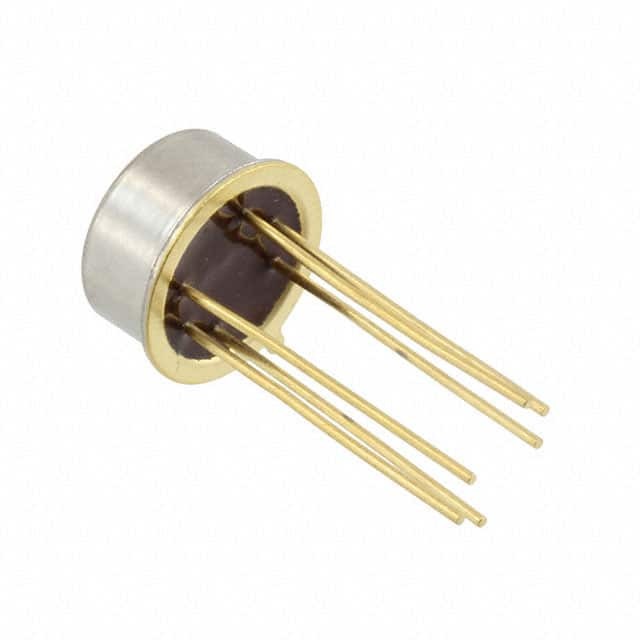

2N2920

SKU: 143057

Manufacturer: Microchip Technology

Trans GP BJT NPN 60V 0.03A 6-Pin TO-78

2340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
HTS	8541.21.00.95
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Dual
Number of Elements per pcs	2
Collector Base Voltage-Max (V)	70
Collector-Emitter Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	1@100uA@1mA
Maximum Collector-Emitter Saturation Voltage (V)	0.3@100uA@1mA
Maximum DC Collector Current (A)	0.03
Minimum DC Current Gain	175@10uA@5V
Maximum Power Dissipation (mW)	350
Operating Temperature-Min	-65
Operating Temperature-Max	200
Original Package	TO-78
Pin Count	6
Standard Package Method	TO-78
Diameter	9.4(Max)
Terminal Form	Through Hole
Package Height	4.7(Max)
