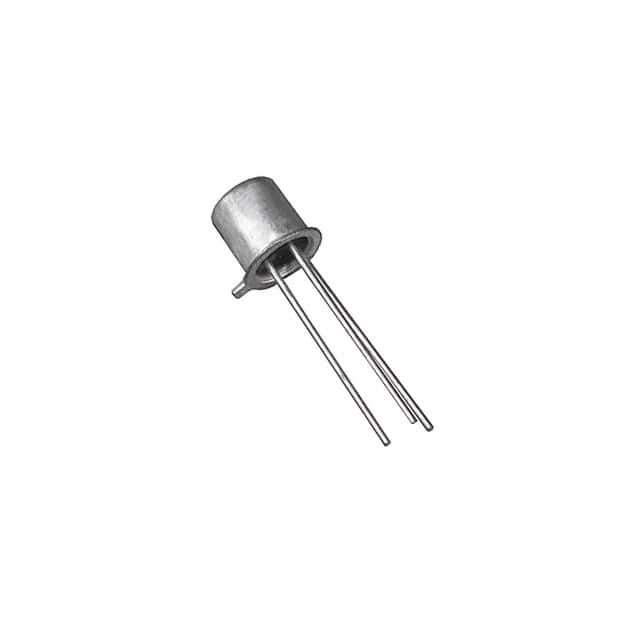

2N2907A

SKU: 7553

Manufacturer: STMicroelectronics

Trans GP BJT PNP 60V 0.6A 400mW 3-Pin TO-18 Bag

2590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	60
Collector-Emitter Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	5
Operating Junction Temperature (°C)	175
Maximum Base Emitter Saturation Voltage (V)	1.3@15mA@150mA
Maximum Collector-Emitter Saturation Voltage (V)	0.4@15mA@150mA
Maximum DC Collector Current (A)	0.6
Maximum Collector Cut-Off Current (nA)	10
Minimum DC Current Gain	75@0.1mA@10V
Maximum Power Dissipation (mW)	400
Maximum Transition Frequency (MHz)	200(Min)
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Bag
Original Package	TO-18
Pin Count	3
Standard Package Method	TO-206-AA
Diameter	5.8(Max)
Terminal Form	Through Hole
Package Height	5.3
PCB changed	3
