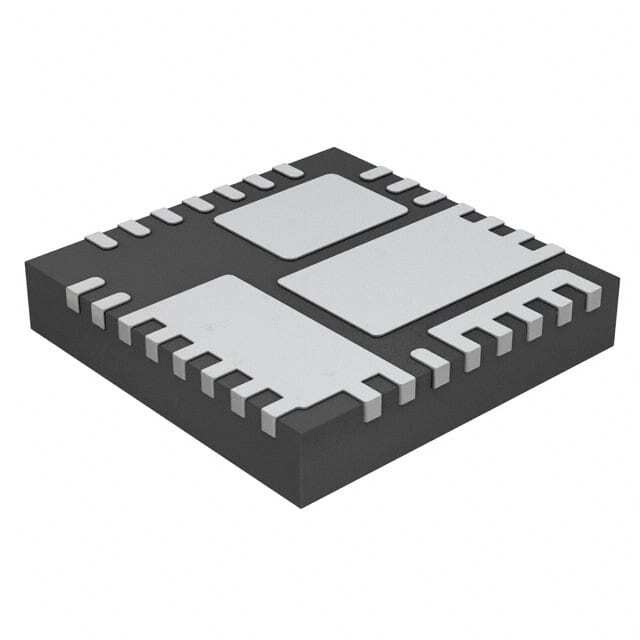

XR76112ELTR-F

SKU: 135817

Manufacturer: MaxLinear, Inc

Conv DC-DC 4.5V to 22V Synchronous Step Down Single-Out 0.6V 12A 30-Pin QFN EP T/R

2530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	800
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.6(Min)
Maximum Output Current (A)	12(Min)
Minimum Input Voltage (V)	4.5
Typical Input Voltage (V)	12
Maximum Input Voltage (V)	22
Operating Supply Voltage (V)	4.5 to 22
Typical Quiescent Current (uA)	700
Line Regulation	0.1%(Typ)
Load Regulation	0.25%(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	QFN EP
Pin Count	30
Terminal Form	Surface Mount
Package Height	0.88
Package Length	5
Package Width	5
