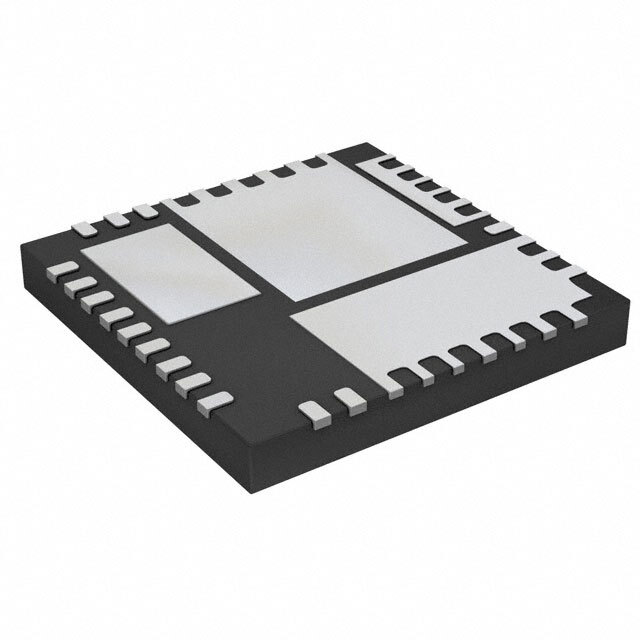

XR76115ELTR-F

SKU: 93217

Manufacturer: MaxLinear, Inc

Conv DC-DC 5V to 22V Synchronous Step Down Single-Out 4.8V to 5.2V 37-Pin QFN EP T/R

2370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	200 to 800
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	4.8 to 5.2
Minimum Input Voltage (V)	5
Typical Input Voltage (V)	12
Maximum Input Voltage (V)	22
Typical Quiescent Current (uA)	700
Line Regulation	0.12%(Typ)
Load Regulation	0.25%(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	37
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.88
Package Length	6
Package Width	6
PCB changed	37
