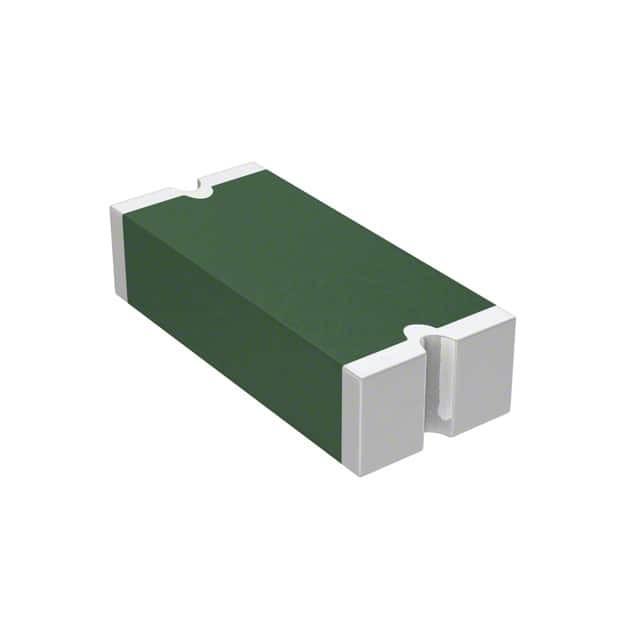

NANOSMD400LR-2

SKU: 158243

Manufacturer: Littelfuse

PTC Resettable Fuse 4A(hold) 8A(trip) 6VDC 50A 1W 2s 0.004Ohm SMD Solder Pad 3.43 X 1.85 X 0.8mm

3200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Part Status	Obsolete
HTS	8533.40.80.70
Automotive	No
PPAP	No
Voltage Rating-Max	6VDC
Current Rating-Max(A)	50
Hold Current (A)	4
Trip Current (A)	8
Minimum Initial Resistance (Ohm)	0.004
Maximum Initial Resistance (Ohm)	0.01
Typical Power Dissipation (W)	1
Maximum Trip Time (s)	2@20A
Terminal Form	Solder Pad
Number of Terminals	2
Size (mm)	3.43 X 1.85 X 0.8
Length (mm)	3.43(Max)
Depth (mm)	1.85(Max)
Height (mm)	0.8(Max)
