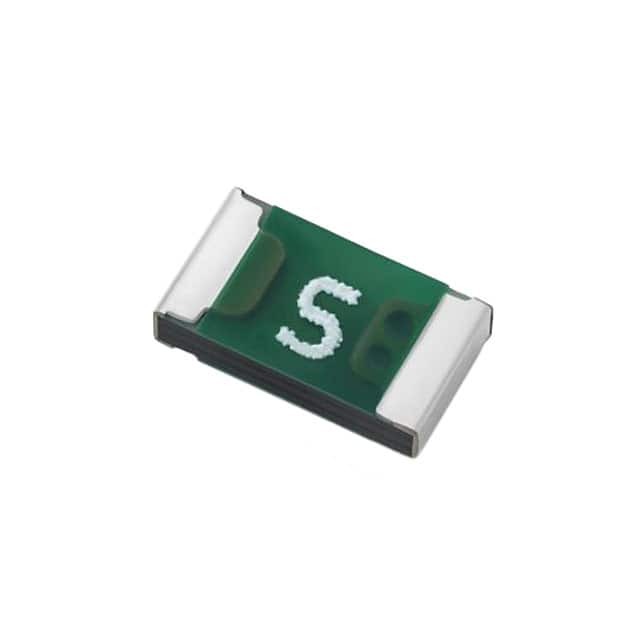

NANOSMD350LR-C-2

SKU: 158244

Manufacturer: Littelfuse

PTC Resettable Fuse 3.5A(hold) 6.3A(trip) 12VDC 1W 0.004Ohm SMD Solder Pad 3.43 X 1.85 X 0.8mm T/R

2460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8533.40.80.70
Automotive	No
PPAP	No
Voltage Rating-Max	12VDC
Hold Current (A)	3.5
Trip Current (A)	6.3
Minimum Initial Resistance (Ohm)	0.004
Maximum Initial Resistance (Ohm)	0.004
Maximum Post Trip Resistance (Ohm)	0.018
Typical Power Dissipation (W)	1
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	3.43 X 1.85 X 0.8
Length (mm)	3.43(Max)
Depth (mm)	1.85(Max)
Height (mm)	0.8(Max)
