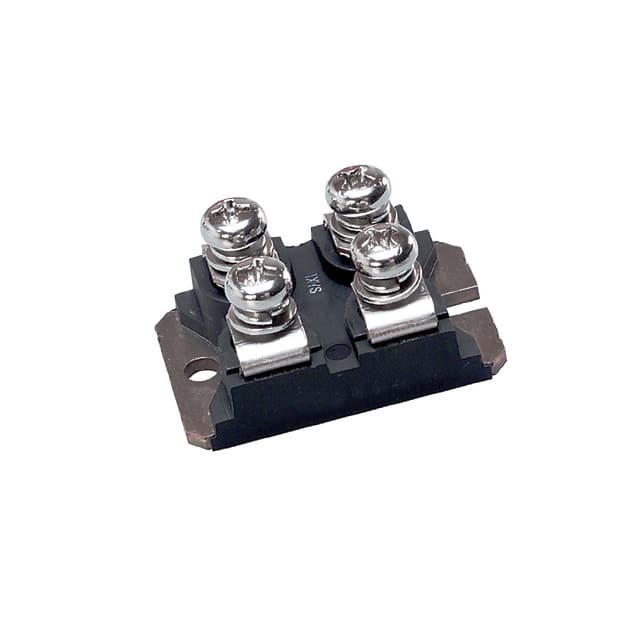

IXFN73N30

SKU: 82734

Manufacturer: Littelfuse

Trans MOSFET N-CH 300V 73A 4-Pin SOT-227B

1080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	NRND
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Dual Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	300
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	73
Maximum Drain Source Resistance (mOhm)	45@10V
Typical Gate Charge @ Vgs (nC)	360@10V
Typical Gate Charge @ 10V (nC)	360
Typical Input Capacitance @ Vds (pF)	9000@25V
Maximum Power Dissipation (mW)	520000
Typical Fall Time (ns)	50
Typical Rise Time (ns)	80
Typical Turn-Off Delay Time (ns)	100
Typical Turn-On Delay Time (ns)	30
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SOT-227B
Pin Count	4
Standard Package Method	SOT
Terminal Form	Screw
Package Height	9.6(Max)
Package Length	38.23(Max)
Package Width	25.42(Max)
PCB changed	4
