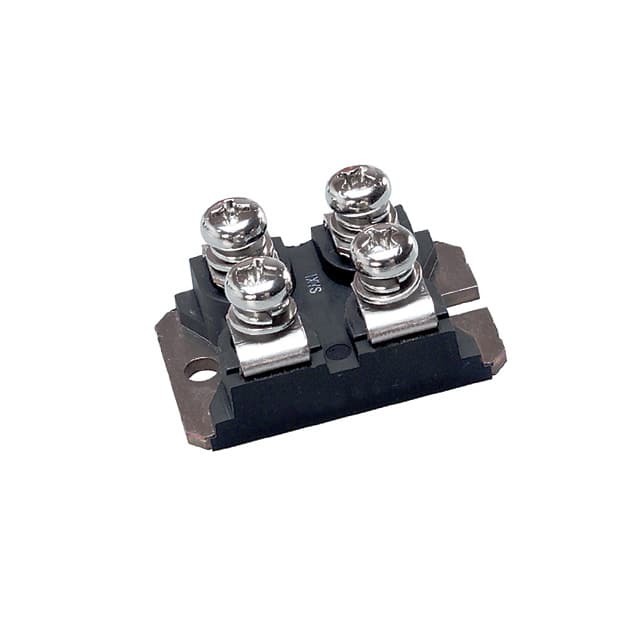

IXFN520N075T2

SKU: 61698

Manufacturer: Littelfuse

Trans MOSFET N-CH 75V 480A 4-Pin SOT-227B

3960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Dual Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	75
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	480
Maximum Drain Source Resistance (mOhm)	1.9@10V
Typical Gate Charge @ Vgs (nC)	545@10V
Typical Gate Charge @ 10V (nC)	545
Typical Input Capacitance @ Vds (pF)	41000@25V
Maximum Power Dissipation (mW)	940000
Typical Fall Time (ns)	35
Typical Rise Time (ns)	36
Typical Turn-Off Delay Time (ns)	80
Typical Turn-On Delay Time (ns)	48
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	SOT-227B
Pin Count	4
Standard Package Method	SOT
Terminal Form	Screw
Package Height	9.6(Max)
Package Length	38.23(Max)
Package Width	25.42(Max)
PCB changed	4
