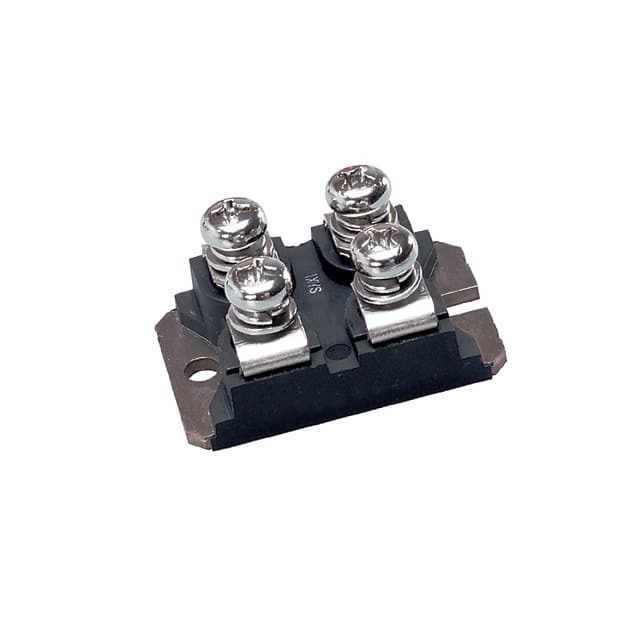

IXFN90N85X

SKU: 30463

Manufacturer: IXYS

Trans MOSFET N-CH 850V 90A 4-Pin SOT-227B

2780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single Dual Source
Process Technology	HiperFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	850
Maximum Gate Source Voltage (V)	±30
Maximum Gate Threshold Voltage (V)	5.5
Maximum Continuous Drain Current (A)	90
Maximum Gate Source Leakage Current (nA)	200
Maximum IDSS (uA)	50
Maximum Drain Source Resistance (mOhm)	41@10V
Typical Gate Charge @ Vgs (nC)	340@10V
Typical Gate Charge @ 10V (nC)	340
Typical Input Capacitance @ Vds (pF)	13300@25V
Maximum Power Dissipation (mW)	1200
Typical Fall Time (ns)	8
Typical Rise Time (ns)	20
Typical Turn-Off Delay Time (ns)	126
Typical Turn-On Delay Time (ns)	50
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	SOT-227B
Pin Count	4
Standard Package Method	SOT
Terminal Form	Screw
Package Height	9.6(Max)
Package Length	38.23(Max)
Package Width	25.42(Max)
PCB changed	4
