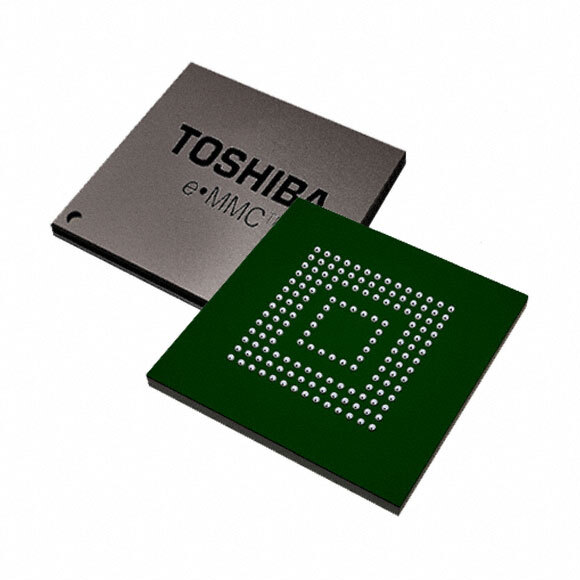

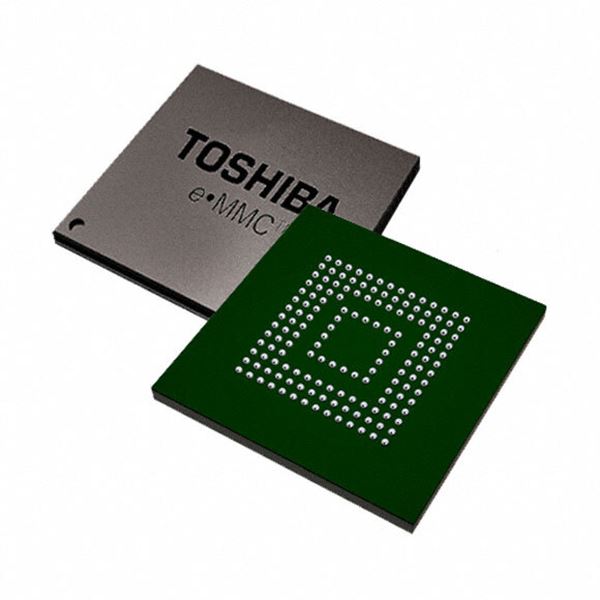

THGBMNG5D1LBAIT

SKU: 113968

Manufacturer: KIOXIA Corporation

NAND Flash Serial e-MMC 3.3V 32G-bit 32G x 1 153-Pin WFBGA

5520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991b.1.a.
Part Status	Active
HTS	8542.32.00.71
Automotive	Unknown
PPAP	Unknown
Cell Type	NAND
Chip Density (bit)	32G
Architecture	Sectored
Boot Block	Yes
Block Organization	Symmetrical
Number of Bits/Word (bit)	1
Number of Words	32G
Programmability	Yes
Timing Type	Synchronous
Process Technology	15nm
Interface Type	Serial e-MMC
Operating Supply Voltage-Min (V)	2.7
Maximum Operating Frequency (MHz)	52
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	30
Operating Temperature-Min	-25
Operating Temperature-Max	85
Command Compatible	Yes
ECC Support	Yes
Support of Page Mode	No
Original Package	WFBGA
Pin Count	153
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.54(Max)
Package Length	11
Package Width	10
PCB changed	153
