APT1608QBC/D

SKU: 116812

Manufacturer: Kingbright Company, LLC

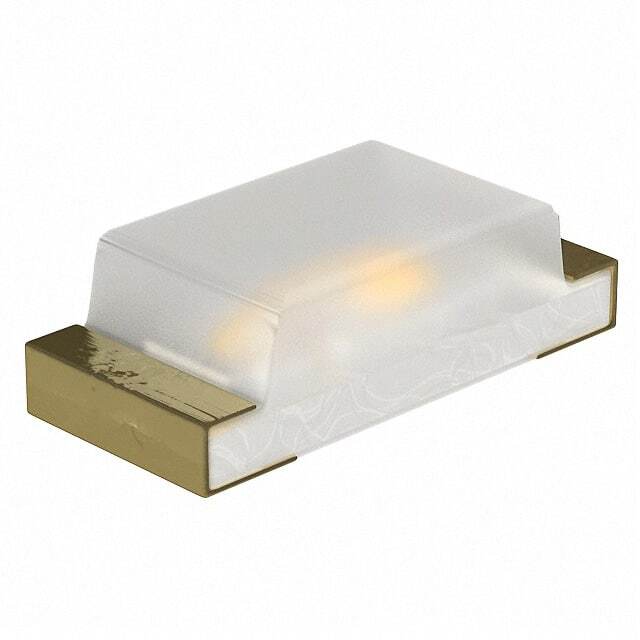

LED Low-Power Uni-Color Blue 460nm 3.3V 2-Pin Chip LED T/R

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color
Number of LEDs	1
LED Body Material	InGaN
Lens Shape Type	Rectangular
Lens Dimensions (mm)	1.25x0.6x0.55
Lens Appearance	Water Clear
Mounting Orientation	Top Mount
Intensity	100mcd
Dominant Wavelength (nm)	465
Peak Wavelength (nm)	460
Viewing Angle (°)	130
Maximum Forward Current (mA)	30
Test Current (mA)	20
Maximum Forward Voltage (V)	4
Reverse Voltage (V)	5(Max)
Typical Forward Voltage (V)	3.3
Maximum Junction Temperature (°C)	115
Internal Protection	No
Maximum Power Dissipation (mW)	120
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Capacitance Value (pF)	115
Supplier Color	Blue
Special Color	Blue
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	SMD
Original Package	Chip LED
Terminal Form	Surface Mount
Package Height	0.75
Package Length	1.6
Package Width	0.8
PCB changed	2
