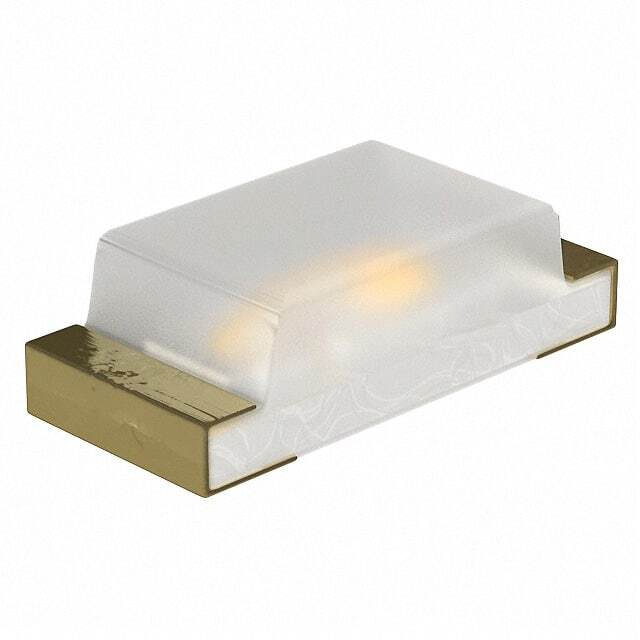

APT1608SECK

SKU: 10633

Manufacturer: Kingbright Company, LLC

LED Uni-Color Orange 610nm 2-Pin Chip LED T/R

764610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color	Orange
Number of LEDs	1
LED Body Material	AlGaInP
Lens Shape Type	Rectangular
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	250mcd
Dominant Wavelength (nm)	605
Peak Wavelength (nm)	610
Viewing Angle (°)	120
Maximum Forward Current (mA)	30
Test Current (mA)	20
Maximum Forward Voltage (V)	2.5
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	75
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Orange
High Power	No
High Brightness	Yes
Packing Method	Tape and Reel
Original Package	Chip LED
Pin Count	2
Standard Package Method	Chip LED
Terminal Form	Surface Mount
Package Height	0.75
Package Length	1.6
Package Width	0.5
PCB changed	2
