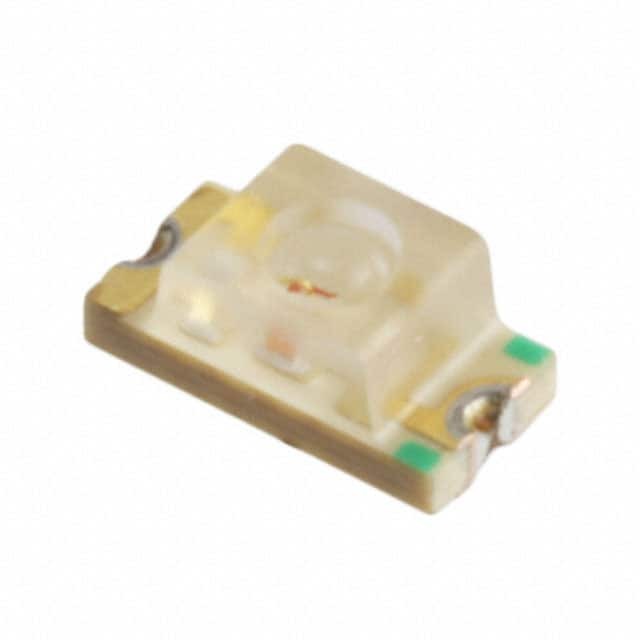

APL3015SGC-F01

SKU: 150407

Manufacturer: Kingbright Company, LLC

LED Low-Power Uni-Color SB. Green 565nm 2.2V 2-Pin Chip LED T/R

2750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color	Green
Number of LEDs	1
LED Body Material	GaP
Lens Shape Type	Circular
Lens Appearance	Water Clear
Mounting Orientation	Top Mount
Intensity	20mcd
Dominant Wavelength (nm)	568
Peak Wavelength (nm)	565
Viewing Angle (°)	70
Maximum Forward Current (mA)	25
Test Current (mA)	20
Maximum Forward Voltage (V)	2.5
Reverse Voltage (V)	5(Max)
Typical Forward Voltage (V)	2.2
Internal Protection	No
Maximum Power Dissipation (mW)	105
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Capacitance Value (pF)	15
Supplier Color	SB. Green
Special Color	SB. Green
High Power	No
High Brightness	Yes
Packing Method	Tape and Reel
Original Package	Chip LED
Pin Count	2
Standard Package Method	Chip LED
Terminal Form	Surface Mount
Package Height	1.4
Package Length	3
Package Width	1.5
PCB changed	2
