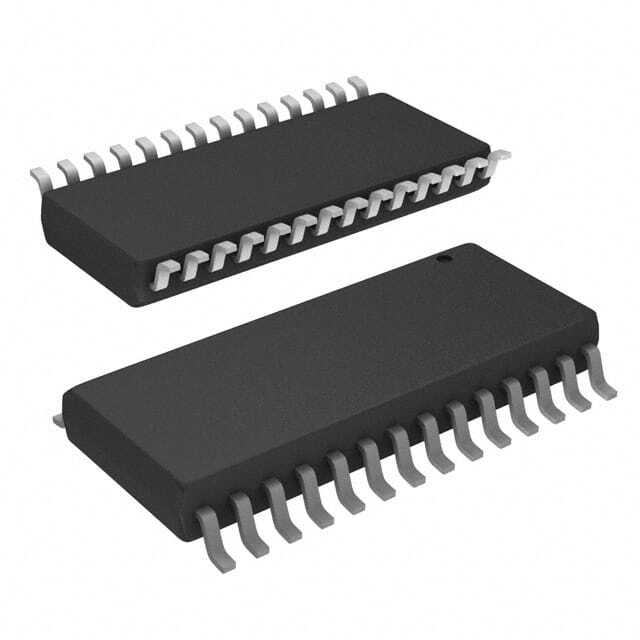

Z86E3016SSG

SKU: 52724

Manufacturer: IXYS

MCU 8-bit Z8 CISC 4KB EPROM 5V 28-Pin SOIC

2000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	Z8
Instruction Set Architecture	CISC
Device Core	Z8
Core Architecture	Z8
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	8
Program Memory Type	EPROM
Program Memory Size	4KB
RAM Size	237B
Maximum Expanded Memory Size	64KB
Programmability	Yes
Number of I/Os	24
No. of Timers	2
USART	0
UART	0
USB	0
SPI	0
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Operating Supply Voltage-Min (V)	3.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	1210
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Extended
Original Package	SOIC
Pin Count	28
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.44(Max)
Package Length	18(Max)
Package Width	7.6(Max)
PCB changed	28
