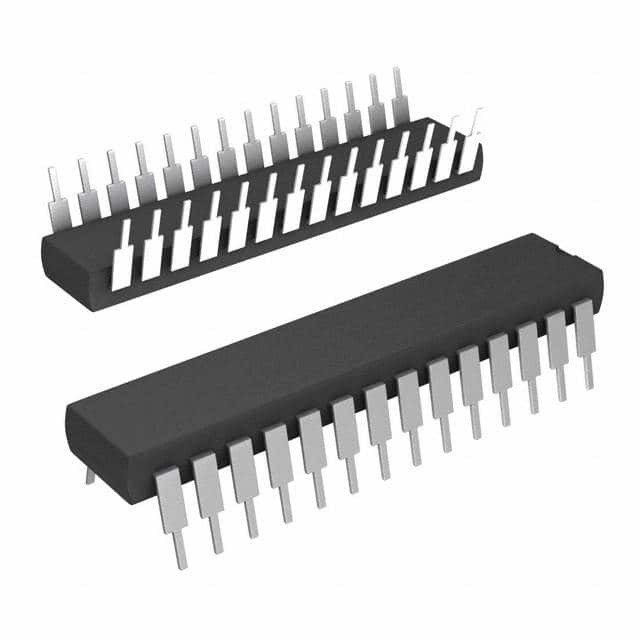

Z86E3016PSG

SKU: 72113

Manufacturer: Zilog

MCU 8-bit Z8 CISC 4KB EPROM 5V 28-Pin PDIP

1570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Family Name	Z8
Instruction Set Architecture	CISC
Device Core	Z8
Core Architecture	Z8
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	8
Program Memory Type	EPROM
Program Memory Size	4KB
RAM Size	237B
Maximum Expanded Memory Size	64KB
Programmability	Yes
Number of I/Os	24
No. of Timers	2
USART	0
UART	0
USB	0
SPI	0
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Operating Supply Voltage-Min (V)	3.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	1210
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Extended
Original Package	PDIP
Pin Count	28
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	4.19(Max)
Package Length	37.34(Max)
Package Width	14.1(Max)
PCB changed	28
