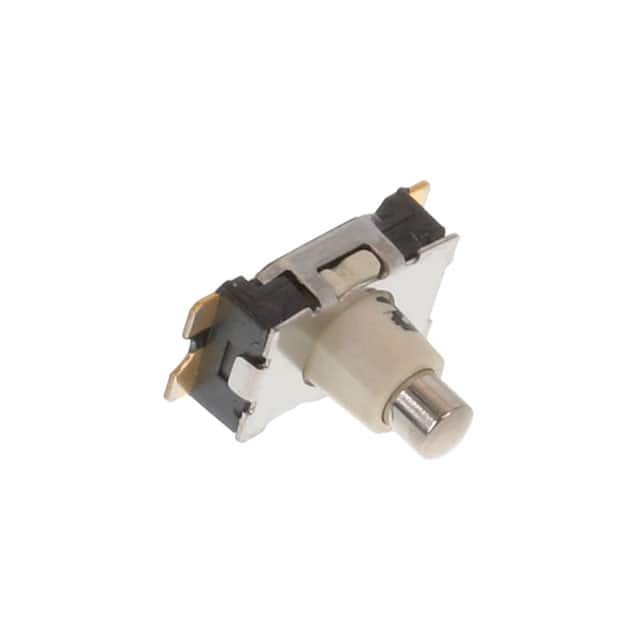

KSU213WLFG

SKU: 146544

Manufacturer: ITT Inc

Switch Detector N.O. SPST Plunger Gull Wing 0.01A 32VDC 0.2VA SMD T/R

2370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Micro Mini Surface Mount
Actuator Style	Plunger
Switch Configuration	N.O.
Pole Throw Configuration	SPST
Current Rating-Max(A)	0.01
Maximum DC Voltage Rating (V)	32
Maximum Power Rating (VA)	0.2
Dielectric Strength	>=250Vrms
Minimum Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	<=100
Mechanical Life (Cycles)	100000
Operating Force (N)	1.1
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	4
Body Orientation	Straight
Total Travel (mm)	0.65
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Actuator Length (mm)	1.5
Body Length (mm)	3.5
Body Depth (mm)	5.5
Body Height (mm)	3.6
Length (mm)	3.5
Depth (mm)	7
