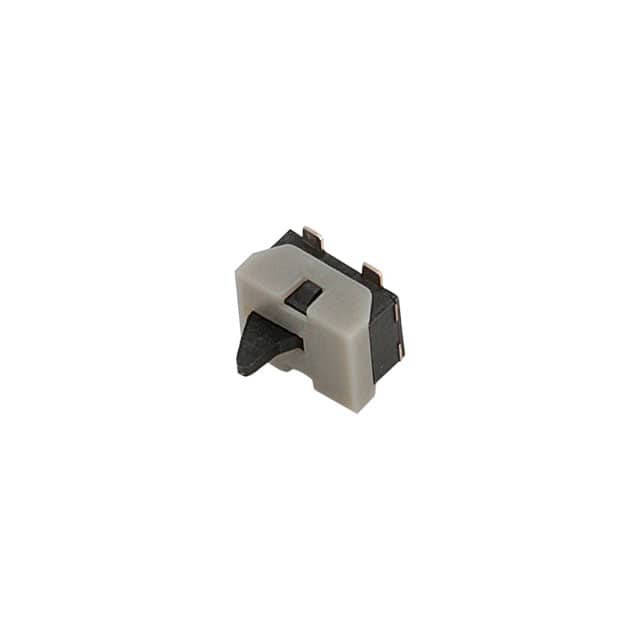

HDT0001

SKU: 18986

Manufacturer: C&K

Switch Detector N.O. SPST Lever Gull Wing 0.001A 5VDC SMD T/R

1500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8538.90.81.80
Automotive	No
PPAP	No
Type	Micro Mini Surface Mount
Actuator Style	Lever
Switch Configuration	N.O.
Pole Throw Configuration	SPST
Current Rating-Max(A)	0.001@5VDC
Maximum DC Voltage Rating (V)	5
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	500
Electrical Life (Cycles)	100000
Mechanical Life (Cycles)	100000
Operating Force (N)	0.34
Terminal Form	Surface Mount
Terminal Form	Gull Wing
Number of Terminals	4
Body Orientation	Straight
Total Travel (mm)	1.05
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Actuator Length (mm)	1.4
Body Length (mm)	3.5
Body Depth (mm)	2.8
Body Height (mm)	1.95
Length (mm)	3.5
Depth (mm)	3.3
