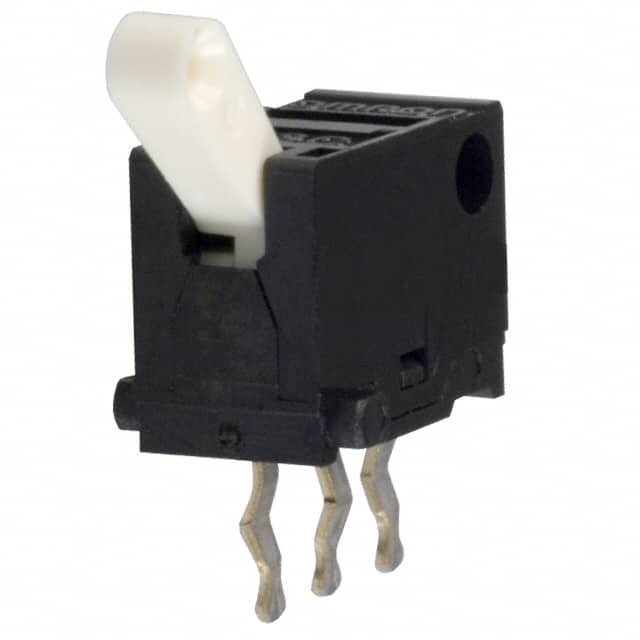

D3C-2220

SKU: 96196

Manufacturer: Omron

Switch Detector N.O./N.C. SPDT Lever PC Pins 0.1A 30VDC Thru-Hole

1610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Actuator Style	Lever
Switch Configuration	N.O./N.C.
Pole Throw Configuration	SPDT
Current Rating-Max(A)	0.1@30VDC
Maximum DC Voltage Rating (V)	30
Dielectric Strength	250VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	50
Electrical Life (Cycles)	50000
Operating Force (N)	0.39
Terminal Form	Through Hole
Terminal Form	PC Pins
Number of Terminals	3
Body Orientation	Straight
Operating Temperature-Min	-20
Operating Temperature-Max	80
Actuator Length (mm)	3.5
Body Length (mm)	8
Body Depth (mm)	5.6
Body Height (mm)	6
Length (mm)	12.6
Depth (mm)	5.6
