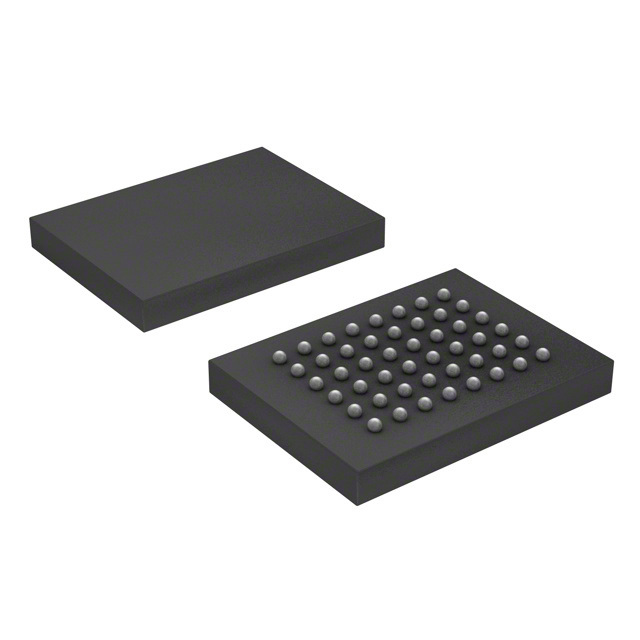

IS64WV25616BLL-10BLA3

SKU: 11983

Manufacturer: Integrated Silicon Solution Inc

SRAM Chip Async Single 2.5V/3.3V 4M-bit 256K x 16 10ns Automotive 48-Pin Mini-BGA

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.2.a
Part Status	Active
HTS	8542.32.00.41
Automotive	Yes
PPAP	Yes
Chip Density (bit)	4M
Number of Words	256K
Number of Bits/Word (bit)	16
Data Rate Architecture	SDR
Address Bus Width (bit)	18
Number of Ports	1
Timing Type	Asynchronous
Max. Access Time (ns)	10
Process Technology	CMOS
Operating Supply Voltage-Min (V)	2.4
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	65
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Original Package	Mini-BGA
Pin Count	48
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.6(Min)
Package Length	8
Package Width	6
PCB changed	48
